Item NO.:
330101-00-30-10-02-05Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.04KGDimension:
58.5x1.5x1.5cmDescription:
PROXIMITY PROBEPrice:
Ask3300 XL 8 mm proximity transducer system · 3/8-24 UNF · approval option 05
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

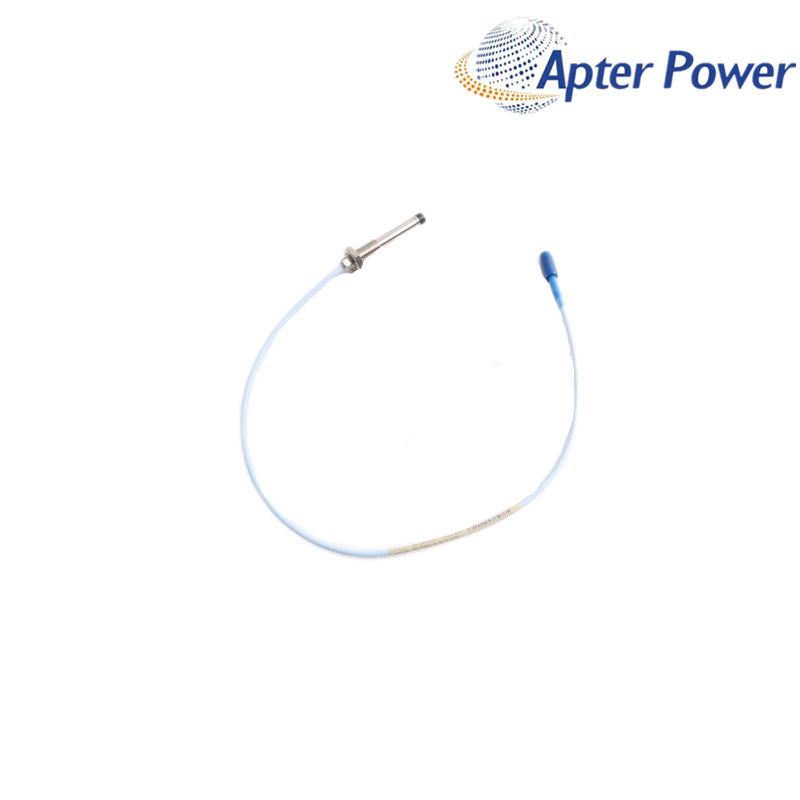

330101-00-30-10-02-05 is a manufacturer-listed 3300 XL 8 mm forward-mount probe with a 3/8-24 UNF thread, zero unthreaded length, a 3.0 in overall case and a 1.0 m standard integral cable. It uses the miniature coaxial ClickLoc connector and is supplied without armor.
330101-00-30-10-02-05 carries the CSA, ATEX and IECEx approval option. The one-metre probe is still only one component of the transducer chain; the extension cable, Proximitor Sensor, mounting geometry and marked hazardous-area conditions must be coordinated before installation.
The complete code appears in the manufacturer’s recommended stocked-probe list.
Balances defined mechanical reach with a one-metre integral cable.
Selects CSA, ATEX and IECEx approvals subject to installation and temperature conditions.
Option 05 identifies an approved configuration, but compliance still depends on the exact marking, temperature schedule, wiring method and manufacturer drawing. Do not release the probe for a hazardous area from the suffix alone.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 0.0 in |
| Overall case length | 3.0 in |
| Integral cable length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 05 — CSA, ATEX and IECEx |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Verify the site zone or division, gas/dust group, temperature class, entity parameters and enclosure requirements against the delivered marking and approved installation drawing.
Complete the one-metre probe with the official extension length needed by the selected five- or nine-metre Proximitor Sensor, then verify ClickLoc seating and gap before loop checks.
No. Compare the delivered marking with the site zone or division, group, temperature class, barrier or non-incendive wiring method and the manufacturer drawing. Stop if any condition is missing or inconsistent.
Use the official four-metre extension cable so the probe and extension total 5 m, then confirm the matching Proximitor Sensor. For a nine-metre system, use the corresponding eight-metre extension.
Not automatically. The 0.2 in increase can change rear clearance, locknut position and reachable gap; compare the installed drawing and available adjustment before substitution.
Check system length, connector seating, probe gap and field wiring to the Proximitor before changing monitor settings. If the delivered approval or cable option does not match the drawing, stop and correct the hardware selection.
Use the approved protected route, maintain the minimum bend radius and keep clamps off the cable-to-case transition. Select an armored manufacturer option if the route cannot prevent crushing or pull.
Send a clear full-nameplate image, mounting and hazardous-area drawings, required total system length, extension and Proximitor labels, quantity, condition and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
3300 XL 8 mm Proximity Transducer System — 141194 Rev. AM
Need the correct revision or configuration document? Send the complete model and installed-system details to Manager JimPei.
