Selection
- Confirm the inch thread and 2.0 in reach rather than substituting a metric probe.
- Verify approval code 05 against the project and supplied-unit markings.
Item NO.:
330101-00-20-10-02-05Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.8x3x6.2cmDescription:
PROXIMITY PROBESPrice:

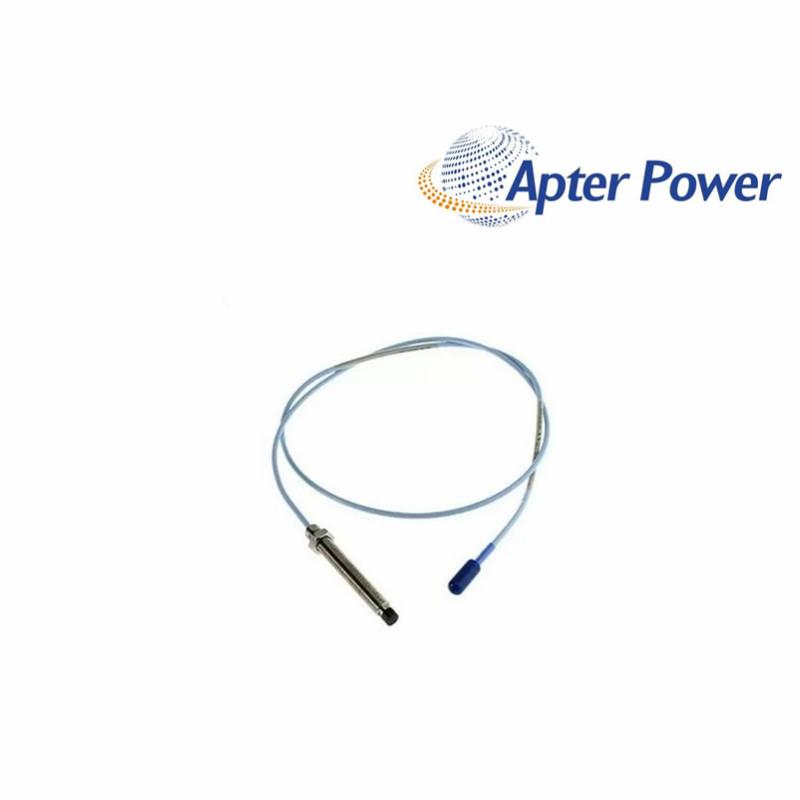

AskA 3/8-24 UNF unarmored probe with a 2.0 in case, 1.0 m standard lead and multiple approvals.
Machines built around 3/8-24 UNF probe mounts need an inch-thread configuration rather than a visually similar metric spare. The 2.0 in case on 330101-00-20-10-02-05 suits compact shaft-vibration and position points where that thread and reach are already established.
Approval code 05 gives 330101-00-20-10-02-05 the CSA, ATEX and IECEx configuration offered for the 3300 XL 8 mm family. That makes the supplied-unit markings, barriers and wiring method part of the installation decision—not just the probe dimensions.
Its 1.0 m unarmored lead ends in a standard miniature ClickLoc connection without a protector. Routing 330101-00-20-10-02-05 away from abrasion and protecting the joint appropriately helps preserve the stable bias and dynamic signal expected from the matched system.
Select it only for a verified 3/8-24 UNF mounting point with the required 2.0 in case reach. Do not substitute it for an M10 × 1 probe even when the overall appearance is similar.
Support the lead, preserve bend radius and protect it from abrasion, oil pooling and moving parts. Apply the project’s certified wiring and connector-protection method rather than relying on the approval suffix alone.
Verify the supplied-unit CSA, ATEX and IECEx markings, barriers or isolators, wiring method, enclosure and site classification. Approval code 05 does not by itself certify the complete field installation.
Confirm correct mechanical gap, stable bias, expected dynamic response and the documented 8 mm channel scale. Record the exact suffix and unit approval markings with the machine-state baseline.
Check connector integrity, cable routing, target surface, channel bandwidth and mechanical looseness. A valid bias confirms only the static operating point, not the full dynamic signal path.
Photograph the complete label and approval marks, then inspect the tip, unarmored cable and ClickLoc connector. Quarantine the unit if the suffix or markings do not match the purchase record.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the 3300 XL 8 mm inch-thread probe geometry, 2.0 in case, 1 m lead, standard connector and multiple-approval option together with the matched-system specifications.
