Mechanical fit
Confirm 3/8-24 UNF engagement, 1.9 in case clearance and withdrawal space.
Item NO.:
330101-00-19-10-02-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
PROXIMITOR SENSORPrice:

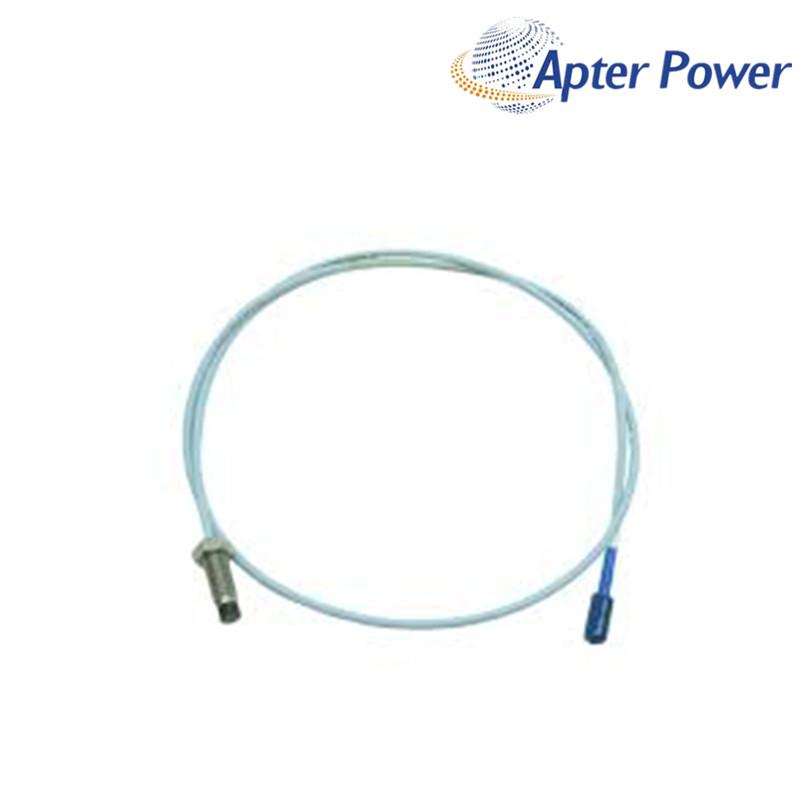

AskA non-armored imperial probe with 0.0 in unthreaded length, a 1.9 in case, 1.0 m lead and standard ClickLoc cable.
330101-00-19-10-02-00 is a probe in the Bently Nevada 3300 XL 8 mm proximity transducer system. 330101 identifies the non-armored 3/8-24 family; its geometry fields specify 0.0 in unthreaded length and a 1.9 in overall case.
For 330101-00-19-10-02-00, the lead field specifies 1.0 m. The cable option is standard clickloc cable; no connector protector, and the final field records 00 — no agency approval required.
Before replacing 330101-00-19-10-02-00, verify bracket thread and clearance, cable routing, approval requirement, extension-cable length and the connected Proximitor Sensor as one documented system.
Confirm 3/8-24 UNF engagement, 1.9 in case clearance and withdrawal space.
Protect the non-armored lead and ClickLoc joint.
Add the 1.0 m lead to the extension cable and match the sensor length.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximity probe |
| System family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Non-armored imperial probe |
| Thread | 3/8-24 UNF |
| Unthreaded length | 0.0 in |
| Overall case length | 1.9 in |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc cable; no connector protector |
| Approval option | 00 — no agency approval required |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0 / -3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Cable type | 75 Ω triaxial cable |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Confirm the 3/8-24 UNF thread, 0.0 in unthreaded section, 1.9 in case length and full withdrawal path.
No. The probe is non-armored, so the installation must protect the lead and connector from mechanical damage.
No. Cable option 02 is the standard ClickLoc cable without a connector protector.
Choose the extension cable so its length plus the 1.0 m probe lead equals the connected Proximitor Sensor system length.
No. Thread, unthreaded length, case length, lead, cable option, approval and system length must all be reviewed.
Provide the full probe label, bracket and withdrawal space, cable route, connector, extension-cable label and Proximitor Sensor label.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300 XL 8 mm Proximity Transducer System Datasheet · 141194 Rev. ANOpen the English manufacturer datasheet for ordering information, technical specifications and system guidance.Browse 40 recommended industrial automation models and open each exact-model search on ApterPLC.
