Imperial mounting
Do not substitute an M10 × 1 probe because it belongs to the same electrical family.
Item NO.:
330101-00-18-10-02-CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
10x15x10cmDescription:
PROBEPrice:

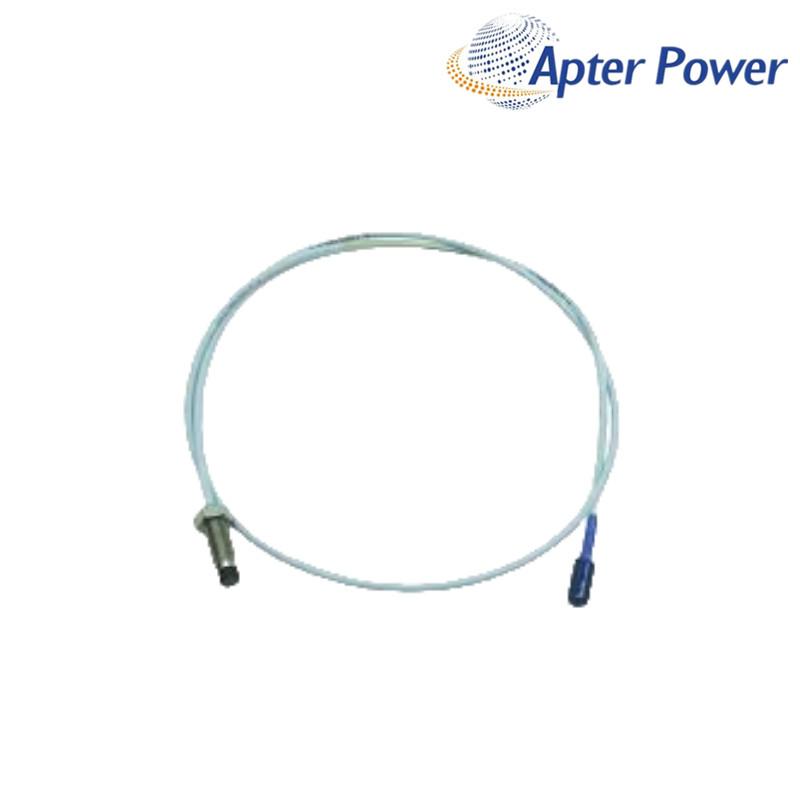

AskA non-armored 3/8-24 UNF probe with a fully threaded 1.8 in case and a 1.0 m lead.
330101-00-18-10-02-CN uses the non-armored 330101 construction with a 3/8-24 UNF probe thread. Its 00 unthreaded field and 18 case field identify a fully threaded 1.8 in body.
The 10 field provides a 1.0 m lead, while option 02 is the standard miniature ClickLoc cable without a connector protector. The extension cable must complete the total electrical length expected by the connected Proximitor Sensor.
The public ordering table does not decode the CN suffix. The supplied nameplate and certificate package should therefore govern any suffix-specific approval decision.
Do not substitute an M10 × 1 probe because it belongs to the same electrical family.
The 1.8 in body determines bracket reach and withdrawal space.
The installed extension cable must complete the sensor system length.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Probe construction | Non-armored imperial probe |
| Thread | 3/8-24 UNF |
| Unthreaded length | 0.0 in |
| Overall case length | 1.8 in |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc; no connector protector |
| Matched-system linear range | 2.0 mm (80 mils) |
| Nominal average scale factor | 7.87 V/mm (200 mV/mil) |
| Matched-system frequency response | 0 to 10 kHz, +0/-3 dB |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 303 or 304 stainless steel |
| Probe cable | 75 Ω triaxial; FEP insulated |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
It uses the imperial 3/8-24 UNF thread.
No. The 330101 base identifies the non-armored probe construction.
The 18 field gives a 1.8 in overall case.
No. Option 02 is standard ClickLoc without a protector.
Provide the complete nameplate, bracket dimensions, extension-cable label and Proximitor Sensor label.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The principal manufacturer source used for this model review is listed below. The delivered revision and certificate package should still govern the final approval decision.
