3/8-24 UNF, without armor
Item NO.:
330101-00-17-10-02-CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
3300 XL 8 MM PROXIMITY PROBEPrice:
Ask
Imperial-thread probe for a matched 3300 XL 8 mm proximity measurement chain.

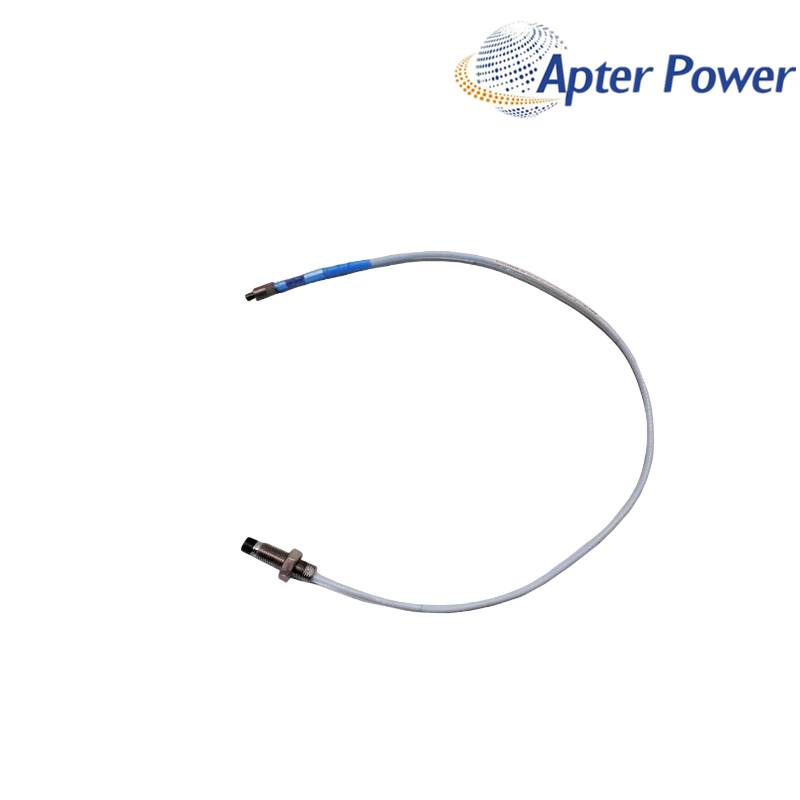

Bently Nevada 330101-00-17-10-02-CN belongs to the 3300 XL 8 mm Proximity Transducer System. Imperial-thread probe for a matched 3300 XL 8 mm proximity measurement chain.
3/8-24 UNF, without armor
0.0 in unthreaded
1.7 in case
1.0 m total lead
Standard cable
Verify complete label
| Case thread | 3/8-24 UNF |
|---|---|
| Cable armor | Without armor |
| Unthreaded length | 0.0 in |
| Overall case length | 1.7 in |
| Total lead length | 1.0 m |
| Connector / cable | Miniature coaxial ClickLoc; standard cable |
| Linear range | 2.0 mm (80 mil) family range |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Probe operating temperature | -51 to +177 °C |
| Minimum bend radius | 25.4 mm |
| Approval suffix | CN — confirm from nameplate and supplied documents |
| Current backend stock | 13 |
| Current backend weight | 0.14KG |
| Current backend dimensions | 2x18.7x12.8cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the installed identity and mechanical context before disconnection.
Compare the exact family, length, mounting and connector details.
Review the receiving system, scale and commissioning response.
Include every order-code segment, manufacturer nameplate and approval marking.
Show the connected probe, cable, sensor, transmitter, rack module and receiving input as applicable.
Current backend stock, packed weight and dimensions remain unchanged until new warehouse evidence is supplied.
Match the 3/8-24 UNF thread, 0.0 in unthreaded length and 1.7 in case length before removal. Also confirm that the installed cable route can accept the 1.0 m probe lead.
First confirm a matched 3300 XL 8 mm probe, extension cable and Proximitor Sensor with the correct total electrical length. Then inspect the ClickLoc connection, cable route and probe gap before resetting the baseline.
Only when its family and length complete the required 3300 XL 8 mm system length with the probe’s 1.0 m lead. Read both cable labels and the Proximitor Sensor system-length marking.
Request a clear full-nameplate photo and the offered approval or regional documents. The public ordering table does not decode CN, so the suffix must not be inferred.
Protect the unarmored cable from abrasion and hot or moving surfaces, keep at least the 25.4 mm bend radius, and avoid loading the ClickLoc connector.
Complete-label comparison before quotation.
Support for maintenance and project spares.
Quotation, delivery and after-sales communication.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the product label and complete order reference.
Add connector or terminal photos and associated signal-chain labels.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Datasheet 141194 provides the family specifications, ordering table and installation context used for this review.
Exact-version note: 0.0 in unthreaded · 1.7 in case · 1.0 m lead · standard ClickLoc cable · CN suffix is label-controlled
