Identify the exact proximity and seismic transducers connected on the same axis.
Item NO.:
3300/65Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
20.5x22.5x3.5cmDescription:
MONITOR MODULEPrice:
AskA legacy 3300 rack monitor that combines same-axis relative shaft vibration and seismic casing vibration into absolute shaft vibration.

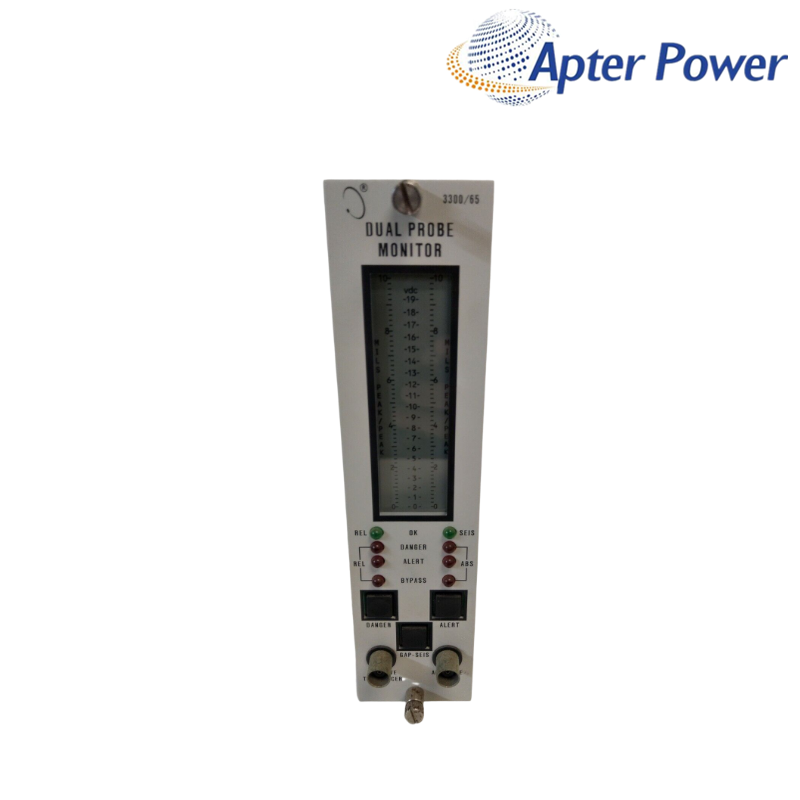

Relative proximity input · seismic velocity input · absolute vibration calculation · full configuration required3300/65 is a Dual Probe Monitor for the Bently Nevada 3300 system. It combines shaft-relative displacement from a proximity transducer with casing vibration from a same-axis velocity transducer.
The 3300/65 provides relative vibration, casing vibration, calculated shaft absolute vibration and average radial position from probe gap. Input families, scale factors, frequency response, full-scale range and relay options depend on the complete monitor configuration.
Because 3300/65 is a family-level identifier rather than a full catalog number, replacement planning should include the complete faceplate and side labels, jumper settings, transducer types, rack configuration and alarm records.
Dual Probe Monitor family
Proximity transducer
Two-wire velocity transducer
Confirm full catalog number
| VERIFIED TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| System | 3300 machinery monitoring |
| Monitor type | Dual Probe Monitor |
| Relative input | 10 kohm |
| Seismic input | Two-wire; 10 kohm |
| Proximity scale factor | 200 or 100 mV/mil selectable |
| Seismoprobe scale factor | 500 mV/(in/s) |
| Recorder outputs | 4-20 mA; 0 to -10 Vdc; +1 to +5 Vdc |
| Power consumption | 1.5 W nominal |
| Operating temperature | 0 to +65 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | Up to 95%, non-condensing |
| Module weight | 1 kg |
| Configuration status | Full 3300/65 catalog number required |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Identify the exact proximity and seismic transducers connected on the same axis.
Capture full catalog number, jumpers, range and frequency settings.
Save Alert, Danger, Trip Multiply, bypass and relay behavior before removal.
Compare relative, seismic, absolute and gap readings with the recorded baseline.
Use the documented same-axis proximity and seismic inputs. A single sensor cannot provide the monitor's intended combined measurement.
A replacement requires the complete catalog number, full-scale range, transducer options, approvals and relay configuration.
Record faceplate and side labels, jumper positions, alarm setpoints, frequency range, recorder settings and relay behavior.
Check input polarity, scale factors, transducer selection, frequency response and the phase relationship between relative and seismic signals.
Verify buffered outputs, recorder signals, gap, relative and seismic channels, then compare absolute vibration and alarm functions with the plant procedure.
Provide the complete front and side labels, rack slot, rear wiring, relay module and both connected transducer labels.
Complete labels and order fields are checked before quotation.
Probe, cable, rack and monitoring roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and available remedy follow the written quotation and sales agreement.
Provide the complete 3300/65 label and order reference.
Add mounting, connector, rack and signal-chain photos.
Describe the symptom, operating state and first occurrence.
Include the applicable sales document and shipment date.
Share the complete product label and tell us whether you need a datasheet, user manual, wiring diagram or other technical document. Installed-system details can help us identify the most relevant available manufacturer material.
Our team will review the available documents and help match the closest useful file for 3300/65.
