Item NO.:
3300/50Order(MOQ):
1Goods Stock:
25Payment:
T/TLead Time：
In stockWeight:
1.5KGDimension:
5.1x20.3x30.0cmDescription:
TACHOMETER MODULEPrice:
AskExact-model industrial support
3300 Monitoring System
Send the full nameplate, rack or system context, required quantity and destination. We will review the exact identity before quotation.

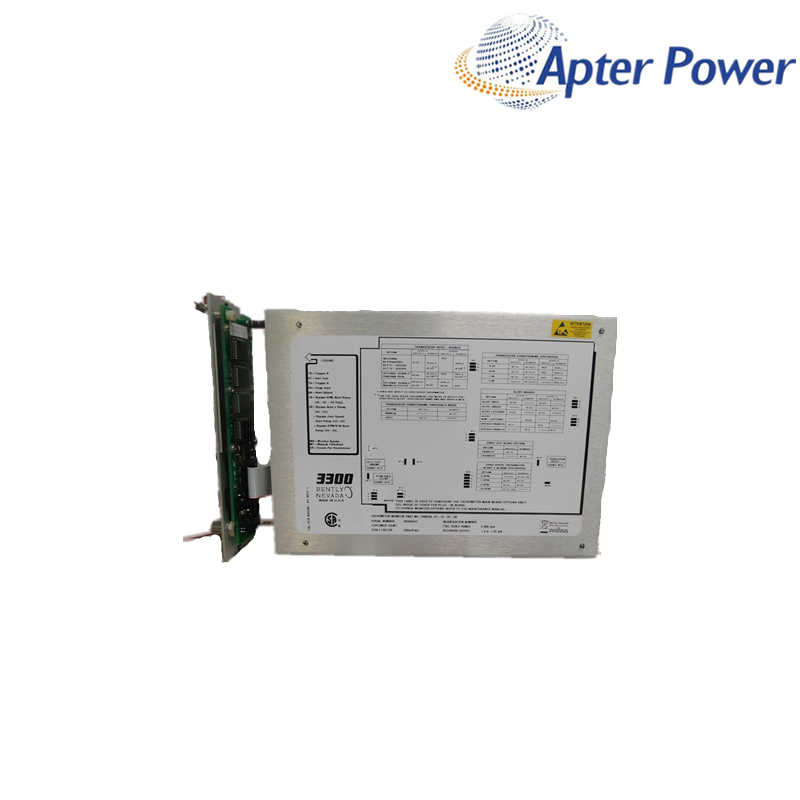

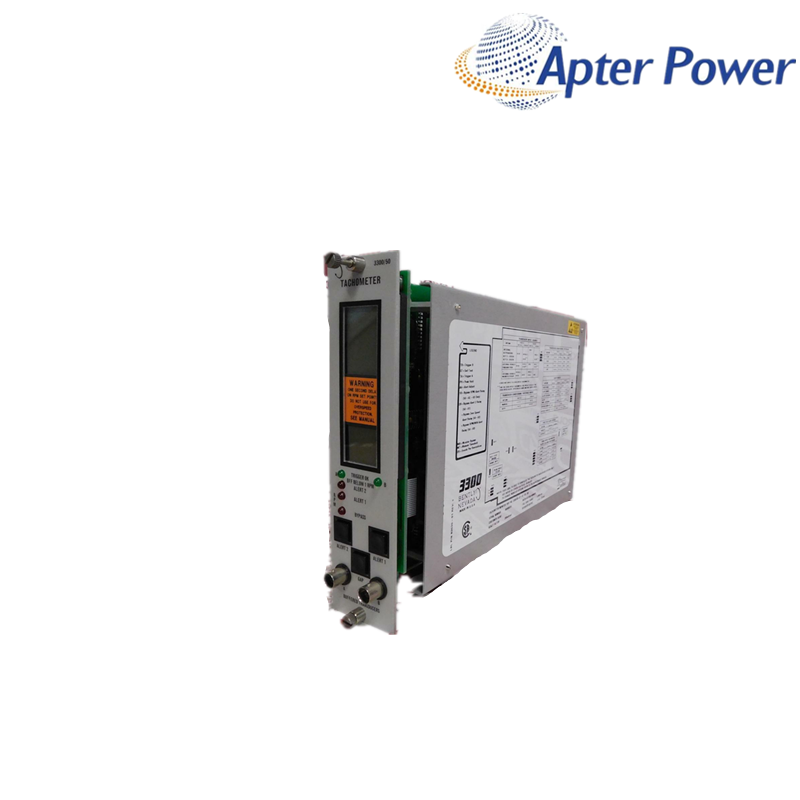

3300/50 accepts two documented proximity-probe or magnetic-pickup signals and converts shaft events into a configured speed-related measurement. The full suffix distinguishes the dual-setpoint tachometer, zero-speed and rotor-acceleration versions.
3300/50 is intended for indication, annunciation and proportional recording within a 3300 monitoring rack. It is not a speed-control or overspeed-protection device, so projects requiring protective overspeed action must use manufacturer-specified protection hardware instead.
The monitor can work with documented proximity systems or magnetic pickups in the permitted function.
Numerator and denominator settings scale the sensed events to actual shaft speed.
The complete suffix selects dual-setpoint speed, zero-speed or rotor-acceleration operation.
The manufacturer states that the module lacks the protective redundancy and response required for overspeed protection or speed control. Use its alarms for indication/annunciation only and keep independent protective hardware in service.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 Monitoring System |
| Product type | Tachometer Monitor |
| Product model | 3300/50 |
| Signal inputs | Two |
| Supported input context | 3300, 7200 or 3000 proximity systems; magnetic pickups where permitted |
| Speed range | 1 to 99,999 rpm for the speed function |
| Rotor acceleration range | -9,999 to +9,999 rpm/min for the configured acceleration function |
| Zero-speed context | Below 100 rpm |
| Events-per-revolution ratio | User-selectable numerator and denominator, 1 to 255 each |
| Recorder-output options | +4 to +20 mA, 0 to -10 Vdc or +1 to +5 Vdc |
| Protection boundary | Not for speed control or overspeed protection |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Set sensor type, threshold, events-per-revolution ratio, full scale and the correct functional version before comparing indicated rpm with the machine control.
Treat Alert outputs and analog signals as indication/annunciation. Maintain an independent manufacturer-approved overspeed protection system where shutdown protection is required.
No. The manufacturer explicitly limits it from speed-control and overspeed-protection service. Keep or specify an independent protective system and use this monitor only for its documented indication, annunciation or recording role.
Check the events-per-revolution numerator and denominator, sensor threshold and target geometry before changing full scale. A correct signal with the wrong event ratio will produce a stable but incorrect speed.
The manufacturer does not recommend magnetic pickups for zero-speed monitoring. Use a documented proximity input and confirm target/gap performance at the lowest required speed.
Compare both buffered inputs, inspect probe gap or pickup clearance, cable shielding and threshold setting, and confirm the target produces clean events. Correct the input signal before altering alarm delays.
Identify whether the installed module outputs 4–20 mA, 0 to -10 Vdc or 1–5 Vdc, then match the recorder range and common. Prove the full-scale output against a known speed before returning it to service.
Include the complete suffix, dual-setpoint/zero-speed/acceleration function, transducer type, events per revolution, operating range, analog output and relay/approval requirements.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
No verified model-specific English PDF is being offered in this tab. Send the complete nameplate and installed-system context so the required manufacturer document can be checked before supply.
