Item NO.:
3300/30Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.9KGDimension:
5.1x20.3x30.0cmDescription:
MONITOR TERPERATURE MODULEPrice:
AskExact-model industrial support
3300 Monitoring System
Send the full nameplate, rack or system context, required quantity and destination. We will review the exact identity before quotation.

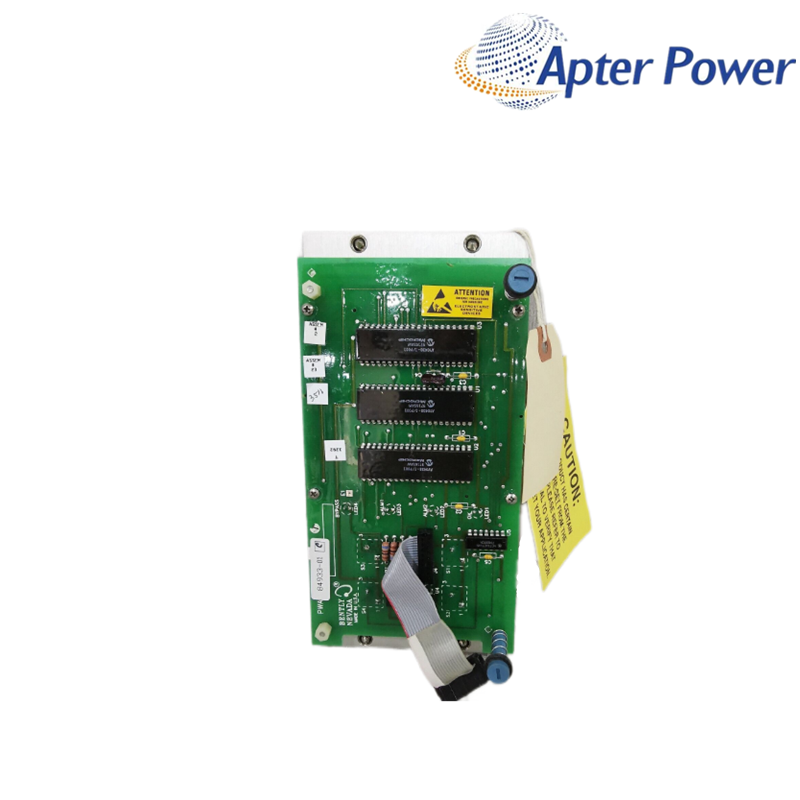

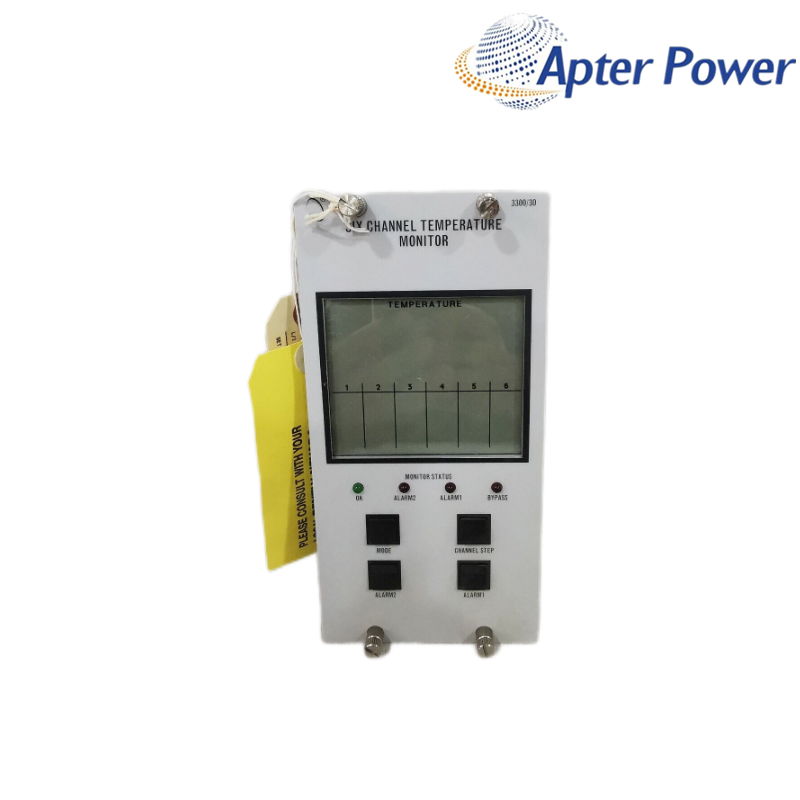

3300/30 provides six independent channels of continuous temperature monitoring for grounded or non-grounded thermocouples. Each installed monitor is configured for the supported thermocouple types and ranges required by the machine temperature points.
3300/30 is the thermocouple member of the 3300 six-channel temperature family and should not be confused with the 3300/35 RTD monitor. Sensor type, extension wire, polarity, full-scale range, recorder arrangement and alarm settings all affect whether an existing loop can be retained.
One rack position accepts as many as six independent thermocouple inputs.
Documented programming supports Type J, K, T and E inputs.
The monitor accepts grounded or non-grounded tip thermocouple signals when wired to the correct input module.
A mismatched alloy, reversed polarity or incorrect range can produce a believable but wrong temperature. Confirm the sensor and extension-wire type at both ends before adjusting alarms or replacing the monitor.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 Monitoring System |
| Product type | Six-Channel Thermocouple Monitor |
| Product model | 3300/30 |
| Input channels | Six |
| Sensor category | Grounded or non-grounded thermocouples |
| Supported thermocouple types | J, K, T and E |
| Documented J/K range context | Up to 500°C (1000°F), according to configured range |
| Documented T/E range context | Up to 250°C (500°F), according to configured range |
| Nominal power consumption | 4 W |
| System data note | Six-channel modules occupy a larger rack data-map block than two-channel monitors |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Match each point’s thermocouple type, engineering range and alarm behavior; preserve the existing data map when a monitor is replaced or moved.
Use channel status together with a polarity and continuity check to distinguish an open thermocouple, wrong alloy, reversed lead or configuration error.
Yes only when every channel uses a supported J, K, T or E thermocouple and the replacement is configured for the same type and range. Record channel assignments and polarity before disconnecting the old module.
Reversed thermocouple polarity or the wrong extension-wire alloy is the first check. Compare the field lead colors and configured type, then test the loop with a known source before changing the alarm range.
No direct substitution should be assumed: the 3300/30 accepts thermocouples, while the 3300/35 is for RTDs. Identify the installed sensors and rear input hardware before selecting a replacement.
Six-channel temperature monitors occupy a different amount of rack data space than two-channel modules. Update the slot/data map and confirm compatible firmware before investigating the thermocouples.
Inject or apply a known temperature signal to each channel, verify type, polarity, displayed value, recorder output and Alert/Danger action. Keep the channel bypassed until the full loop responds correctly.
Send the full catalog code, six channel sensor types and ranges, recorder and relay requirements, approval option, rack generation and clear labels from the front and rear modules.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
No verified model-specific English PDF is being offered in this tab. Send the complete nameplate and installed-system context so the required manufacturer document can be checked before supply.
