Label scope
Use the rear label to resolve the complete catalog options.
Item NO.:
3300-3-1Order(MOQ):
1Goods Stock:
7Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
MODULEPrice:
AskAn existing legacy-marked 3300 System Monitor record corresponding to the standard 3300/03 monitor family.

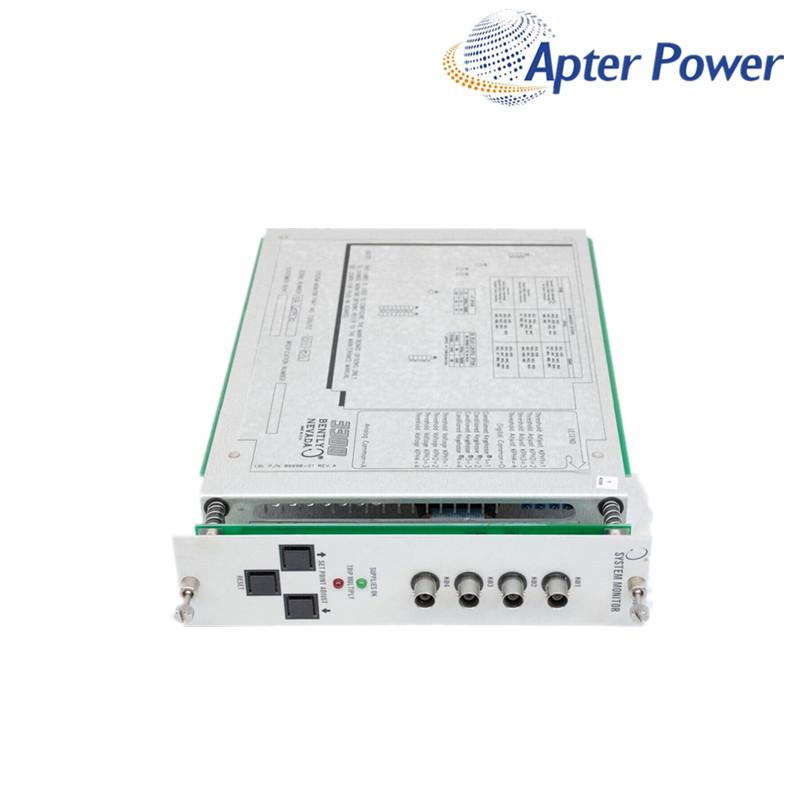

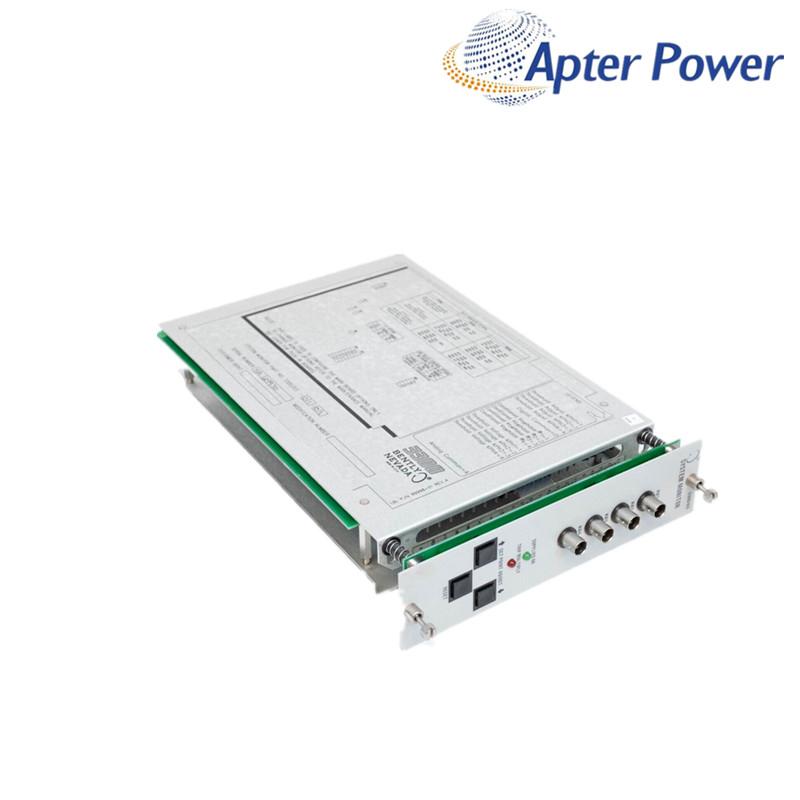

3300-3-1 identifies a legacy Bently Nevada System Monitor in the 3300 rack platform. Its front-panel format and published rack role align with the 3300/03 family, which provides common system functions for the monitor rack.
The official 3300/03 ordering table defines type 01 as the standard System Monitor and uses a separate approval block. The shorter 3300-3-1 string does not expose that approval block.
3300-3-1 is a shortened legacy marking, while the manufacturer catalog separates monitor type and approval options. A readable rear label and the installed interface arrangement help ApterPLC distinguish the correct System Monitor version without changing the customer-supplied identity.
Use the rear label to resolve the complete catalog options.
The System Monitor installs in position two next to the power supply.
Confirm whether the installed unit is standard, SDI or DDI/SDI.
| Manufacturer | Bently Nevada |
|---|---|
| Existing exact Item No. | 3300-3-1 |
| Documented family | 3300/03 System Monitor |
| Closest documented type | 01 — standard |
| Approval block | Not present in supplied short code |
| Rack position | Position two, next to the power supply |
| System functions | Alarm setpoint adjustment, Keyphasor distribution and alarm acknowledgement |
| External data ports | Static and dynamic data connections |
| Operating temperature | 0°C to +65°C (+32°F to +150°F) |
| Storage temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative humidity | Up to 95%, noncondensing |
| Published monitor weight | 0.9 kg (2.2 lb) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Use the complete rear label to confirm the monitor type, interface arrangement and approval block. The short marking alone does not expose every catalog option.
Compare the interface type, rear connectors, firmware context and rack configuration. A front-panel match does not establish the correct data interface.
Verify alarm acknowledgement, Keyphasor distribution, common rack functions and any connected data interface before returning the rack to service.
Start with rack power, rear connectors, alarm-reset wiring and the confirmed System Monitor type. This helps separate a monitor fault from a rack-interface issue.
Compare the rear label, front panel, connector arrangement and approval markings with the purchase record and installed unit.
A full rear-label photo, front-panel view, rack position and communication-connector photos allow a focused System Monitor review.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300/03 System Monitor Datasheet · 141524 Rev. FOpen the English manufacturer datasheet for monitor functions, ordering information and technical details.|
