Item NO.:
3300/12Order(MOQ):
1Goods Stock:
24Payment:
T/TLead Time：
In stockWeight:
1.36KGDimension:
5x20x33cmDescription:
POWER SUPPLYPrice:
AskExact-model industrial support
3300 Monitoring System
Send the full nameplate, rack or system context, required quantity and destination. We will review the exact identity before quotation.

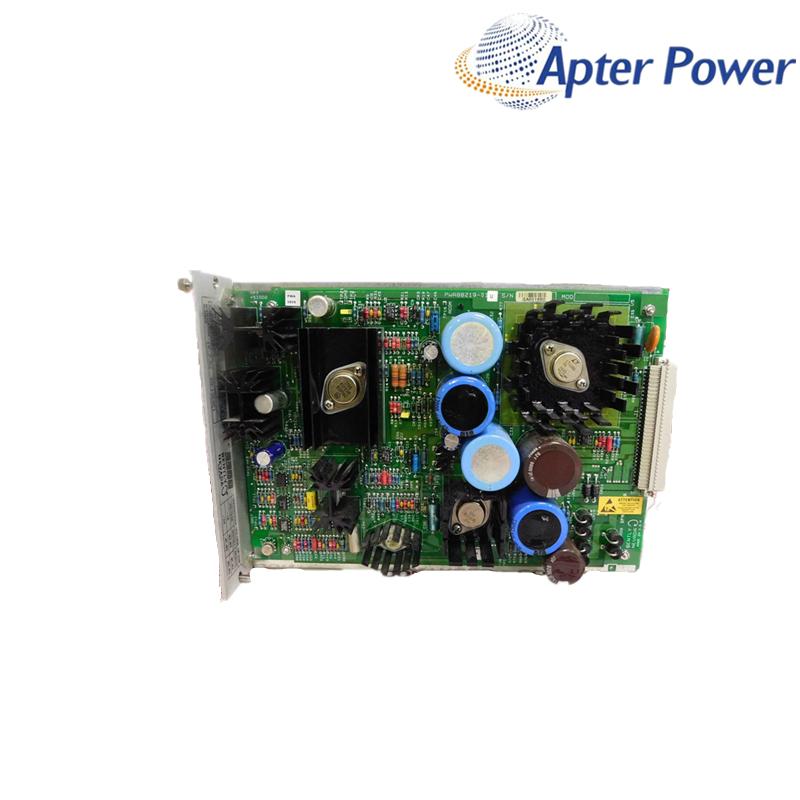

3300/12 is the ac supply installed in the left-most position of a compatible 3300 rack. It converts the selected 115 or 220 Vac input range into regulated dc voltages for the rack monitors and their connected transducers, with an input line-noise filter provided as standard.
3300/12 must be matched to the power-input module, fuse/input selection, backplane generation and transducer-voltage requirement. The supply also provides the rack OK relay path, so loss of primary power or an internal supply problem must be included in the machinery-protection alarm strategy.
One module supplies as many as 12 rack monitors and their associated transducers in the documented configuration.
The input can be configured for the documented low- or high-voltage range using the required jumper and fuse arrangement.
A normally energized SPDT OK relay is located at the Power Input Module for external annunciation.
A mechanically fitting supply may have the wrong voltage selection or may be used with an incompatible backplane. Verify the complete 3300/12 option, fuse, PIM and 3300/05 generation before applying primary power.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 Monitoring System |
| Product type | AC Power Supply |
| Product model | 3300/12 |
| Rack position | Position 1, left-most |
| Low ac input | 95 to 125 Vac, 50/60 Hz, 1.0 A maximum |
| High ac input | 190 to 250 Vac, 50/60 Hz, 0.5 A maximum |
| Transducer power | Field-programmable -24 Vdc or -18 Vdc |
| OK relay | Normally energized SPDT at the Power Input Module |
| Operating temperature | 0°C to +65°C (+32°F to +150°F) |
| Relative humidity | Up to 95%, noncondensing |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Use the correct primary fuse and input selection, then route the normally energized OK relay to an external annunciator so loss of rack protection is visible.
The 3300/12 belongs with a later SDI/DDI-compatible backplane; verify the 3300/05 rack option and System Monitor before retrofit.
The manufacturer documents field changeover by the correct soldered jumper and external fuse. Have qualified personnel verify the PIM, jumper, fuse and incoming voltage before the rack is energized.
Isolate power and check the selected input range, external fuse, PIM wiring, module seating and backplane compatibility. Do not keep replacing monitor cards until the primary and regulated supply voltages are confirmed.
Do not assume that it can. The compatibility guide separates original and SDI/DDI backplanes and states that old and new power-supply/backplane generations cannot be mixed.
Identify every installed transducer family and the required -18 or -24 Vdc supply, then confirm the individual monitor configuration. Change the setting only when the complete rack load is known.
Use the normally energized OK relay at the Power Input Module with an external annunciator as recommended by the manufacturer. Test the alarm path during commissioning rather than relying only on the rack front panel.
Provide the complete suffix, input voltage, fuse/PIM arrangement, 3300/05 rack code, System Monitor, approval option and photographs of the existing supply and rear connections.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
No verified model-specific English PDF is being offered in this tab. Send the complete nameplate and installed-system context so the required manufacturer document can be checked before supply.
