Voltage label
Confirm 95–125 Vac or 190–250 Vac from the full catalog label.
Item NO.:
3300-12-1Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
1.36KGDimension:
5x20x33cmDescription:
POWER SUPPLYPrice:
AskAn existing legacy-marked AC power-supply record for the Bently Nevada 3300 monitoring rack.

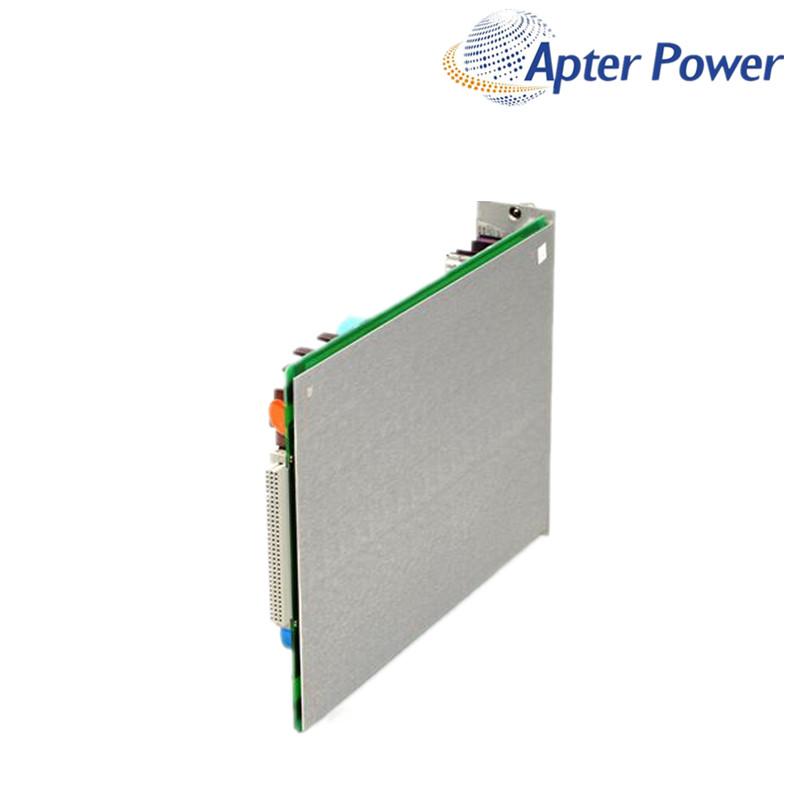

3300-12-1 identifies a legacy Bently Nevada 3300/12 AC Power Supply used in the left-most position of a 3300 monitor rack. The supply provides rack power and configurable transducer output for the installed monitoring system.
The documented catalog format is 3300/12-AXX-BXX-CXX, covering input voltage, Power Input Module and agency approval options. The shorter 3300-12-1 code does not expose all three blocks.
For 3300-12-1, the complete power-supply label is the best guide to the input-voltage, Power Input Module and approval selections. Reviewing those blocks together helps protect the rack from an unsuitable power configuration.
Confirm 95–125 Vac or 190–250 Vac from the full catalog label.
Verify standard, internal-barrier or spare-supply-only configuration.
The supply installs in the left-most rack position.
| Manufacturer | Bently Nevada |
|---|---|
| Existing exact Item No. | 3300-12-1 |
| Documented family | 3300/12 AC Power Supply |
| Documented catalog format | 3300/12-AXX-BXX-CXX |
| Input voltage options | 95–125 Vac or 190–250 Vac, 50/60 Hz |
| Power Input Module options | Standard, internal safety barriers, or spare supply only |
| Transducer output voltage | -24 Vdc or -18 Vdc, field programmable |
| Rack position | Position one, left-most |
| Published power-supply weight | 1 kg (2.2 lb) |
| Operating temperature | 0°C to +65°C (+32°F to +150°F) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Use the complete label to confirm input voltage, Power Input Module and approval selections. The short marking does not show all three catalog blocks.
The PIM configuration should remain consistent with the installed safety-barrier arrangement. A standard PIM is not an automatic substitute for an internal-barrier version.
Confirm input voltage, grounding, fuse selection, rack power and transducer-output setting before reconnecting monitoring channels.
Start with the input-voltage selection, PIM connection, fuses and left-most rack installation before investigating downstream monitor modules.
Compare the front and rear labels, PIM markings, input terminals and approval information with the purchase record.
Front and rear label photos, input-terminal details, PIM markings and full rack context allow the exact power configuration to be reviewed.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300/12 AC Power Supply Datasheet · 141496 Rev. HOpen the English manufacturer datasheet for power-supply functions, ordering information and technical details.|
