Selection
- Map the two dynamic channels and speed input to the actual machine train before ordering sensors.
- Confirm the 00 approval choice is suitable for the installation area.
Item NO.:
2300/20-00Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.95KGDimension:
15.2x14.6x6.8cmDescription:
Two-Channel Vibration MonitorPrice:
AskA two-channel monitor with internally powered 4-20 mA outputs, speed input, relay protection and no selected approval option.

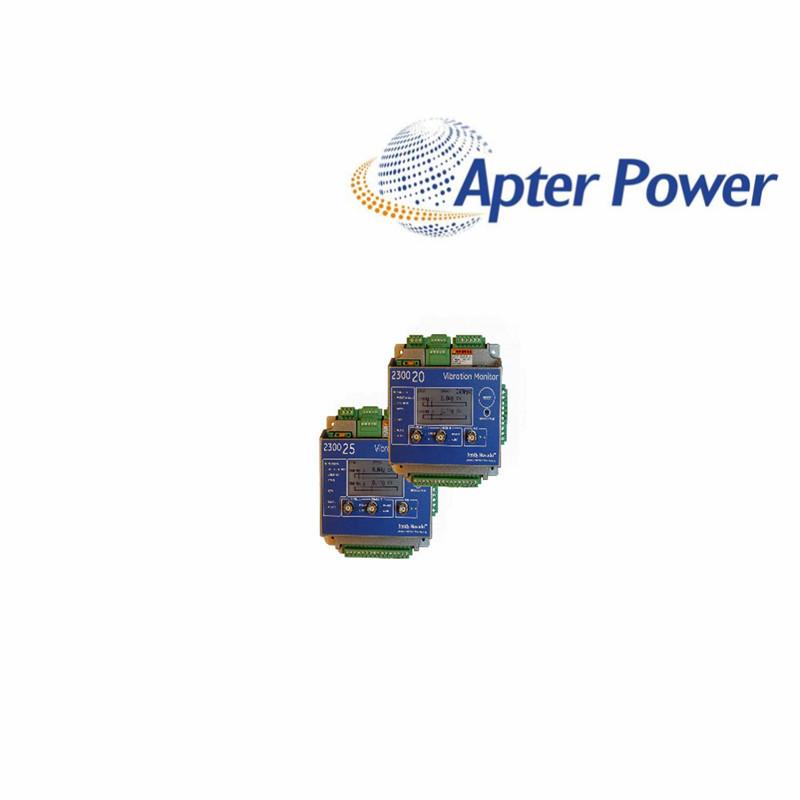

Bently Nevada 2300/20-00 is a two-channel vibration monitor for continuous condition monitoring and protection of pumps, fans, motors, gearboxes and other medium- to low-criticality rotating assets.
The monitor accepts accelerometer, Velomitor or Proximitor inputs, adds a dedicated speed channel, and provides relay protection plus two internally powered 4-20 mA outputs. 2300/20-00 can therefore supply local monitoring and plant-control values from one compact panel or DIN-mounted unit.
For a complete 2300/20-00 quotation, specify both sensor types, measurement units, speed input, relay logic, 4-20 mA scaling and required network connection. The receiving DCS inputs must be passive because the monitor powers its own analog-output loops.
It is designed for continuous monitoring and protection of medium- to low-criticality rotating assets such as pumps, fans, motors and gearboxes. Its two vibration channels are useful where a compact local monitor must also provide plant-control outputs.
The monitor supports accelerometer, Velomitor and Proximitor inputs, allowing the channel design to follow the required casing or shaft-related measurement. Both channel sensor types and measurement units should be defined before configuration is approved.
Its two 4-20 mA outputs are internally powered, so the receiving analog inputs must be passive. Applying another powered loop can create an electrical conflict; the DCS wiring design should therefore treat the monitor as the loop source.
The dedicated speed channel lets vibration be interpreted against machine operating speed rather than as an isolated amplitude. This helps users separate startup, running-speed and changing-load conditions when reviewing a vibration event.
The monitor provides two dry-contact SPDT relay outputs in addition to its vibration and speed signals. Relay logic, alarm voting and shutdown use remain project decisions, so their intended action should be documented before the unit is commissioned.
A useful RFQ defines both sensor types, vibration units and scales, speed input, relay behavior, 4-20 mA ranges and required network connection. These choices determine the delivered monitoring function more clearly than the base model alone.
Products supplied by ApterPLC are covered for 12 months under the applicable sales terms. Keep the complete unit nameplate, packing record and transaction details so the exact product can be identified during support.
The selected document contains the official product description, configuration data and engineering information relevant to 2300/20-00. Unrelated catalog pages have been removed where filtering was needed.
|
