Item NO.:
21000-28-10-00-098-04-02Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
1.16KGDimension:
8.5x8.5x44.5cmDescription:
PROXIMITY PROBE HOUSING ASSEMBLIESPrice:
Ask21000 Proximity Probe Housing Assembly · Exact-model review for engineering and procurement decisions.
|
Confirm the installed configuration before ordering
Manager JimPei · Model, nameplate and technical-document review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |

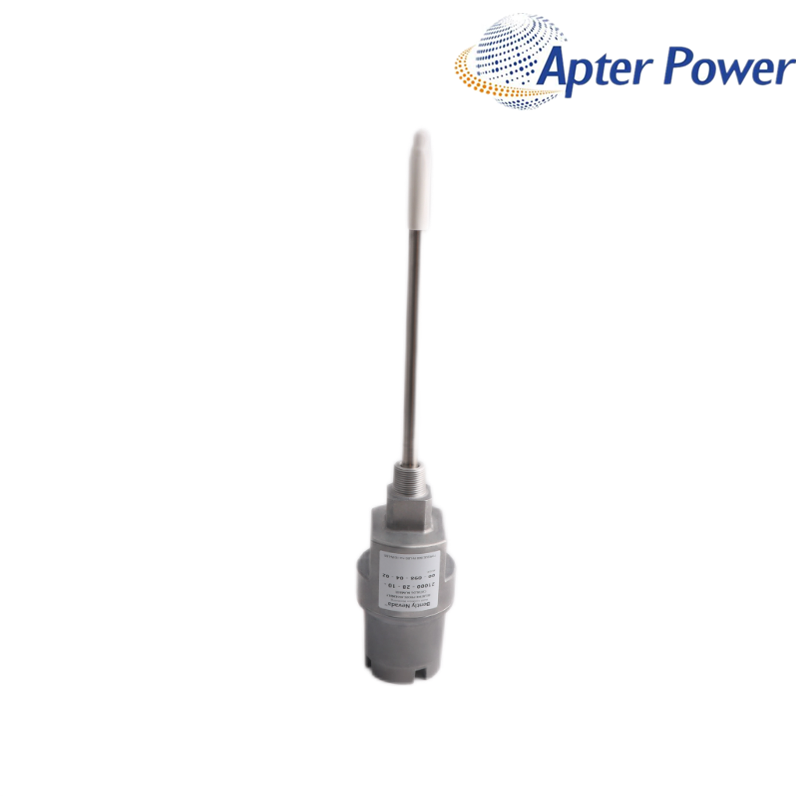

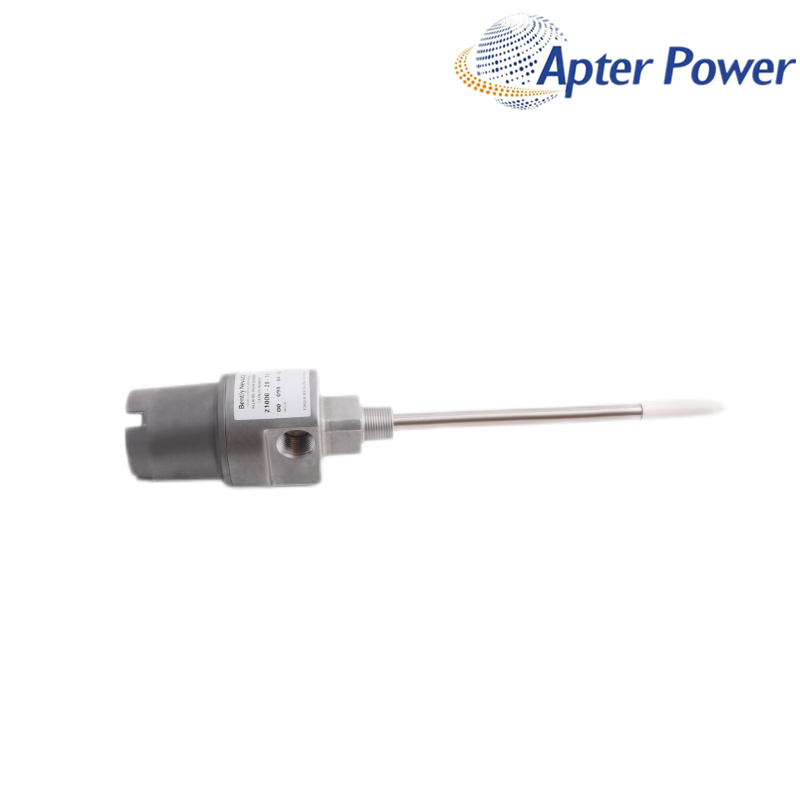

21000-28-10-00-098-04-02 identifies a configured Bently Nevada 21000 proximity probe housing assembly for a 3300 XL 8 mm probe. The documented configuration uses a 1 m probe cable, no standoff adapter, a 9.8 in case-penetration selection, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.
21000-28-10-00-098-04-02 protects and positions the probe where external access, conduit entry and a dome cover are required. Successful selection depends on matching the complete configured code to the machine drawing, probe system, penetration depth, port thread and required fittings.
9.8 in penetration choiceThe 098 selection defines the documented case penetration used to position the probe through the housing. |
No-standoff configurationThe 00 option omits the standoff adapter, affecting reach and external clearance. |
3300 XL 8 mm probe contextThe 28 probe selection belongs to the manufacturer-defined 3300 XL 8 mm configuration. |
The probe lead must pass through the selected 9.8 in sleeve while retaining enough length for internal routing and connector access. Stop the installation if the available probe lead cannot be routed without tension or an unsupported bend; select a documented probe-cable option instead of altering the lead.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 21000 Probe Housing Assembly |
| Housing configuration | 3300 XL 8 mm probe, 1 m cable, no standoff and 9.8 in penetration |
| Probe selection | 3300 XL 8 mm probe with selectable approvals |
| Probe-cable option | 10 = 1.0 m cable |
| Standoff option | 00 = none |
| Case penetration | 098 = 9.8 in |
| Fitting option | 04 = one 3/4-14 NPT plug only |
| Port-thread option | 02 = 3/4-14 NPT |
| Body material | Aluminum |
| Sleeve material | 304 stainless steel |
| Housing form | External probe housing with dome cover and conduit ports |
Commercial packing weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Installation & IntegrationConfirm the 9.8 in penetration, no-standoff arrangement, probe reach, thread engagement and dome-cover clearance on the machine drawing. Do not assume another 21000 sleeve length will position the probe correctly. |
Accessories & Conduit EntryThe documented 04/02 configuration includes one 3/4-14 NPT plug and uses 3/4-14 NPT ports. Any additional or hazardous-area fittings must be specified and approved separately. |
Drawing-based housing selection: Send the complete label code, probe-system details, machine penetration and mounting drawing, conduit arrangement, hazardous-area requirements, required fittings and installation photographs.
No direct substitution should be made because the 00 option specifies no standoff. Recheck probe reach, thread engagement and external clearance against the approved drawing before ordering or drilling.
Confirm the required 9.8 in case penetration, probe-tip position, 3/4-14 NPT thread engagement and dome-cover clearance. Compare those dimensions with the complete code rather than a visually similar housing.
The manufacturer requires support when standoff plus penetration exceeds 12 in; this 9.8 in no-standoff selection does not cross that threshold. The approved machine drawing must still control mounting and vibration checks.
Retain it only after confirming the probe, extension cable and Proximitor labels, required approvals and target geometry. The housing code identifies the probe selection, but it does not prove that the installed electrical chain is correctly matched.
The 04 fitting option supplies one 3/4-14 NPT plug only. Specify any additional or hazardous-area fittings separately and verify them against the site classification before installation.
Send the complete visible nameplate, machine drawing, penetration and clearance dimensions, probe-system labels, port-thread and fitting requirements, site approvals, quantity and destination.
Product identity and technical statements were checked against 21000 and 24701 Proximity Probe Housing Assemblies Datasheet, document 141600 Rev. AC. Verify the complete installed nameplate, revision, companion components and project drawing before commissioning.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Official technical document
Use the official Bently Nevada publication for product identification, ordering-code review, dimensions and installation planning for the 21000 proximity probe housing family.
3300 XL 8 mm probe with selectable approvals; 1.0 m probe cable; no standoff adapter; 9.8 in probe penetration; one 3/4-14 NPT plug; 3/4-14 NPT mounting thread.
