Item NO.:
18745-04Order(MOQ):
1Goods Stock:
36Payment:
T/TLead Time：
In stockWeight:
0.24KGDimension:
8x2.8x6cmDescription:
PROXIMITOR SENSORPrice:
Ask7200 Series 5 mm / 8 mm Proximity Transducer System · Exact-model review for engineering and procurement decisions.
|
Confirm the installed configuration before ordering
Manager JimPei · Model, nameplate and technical-document review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |

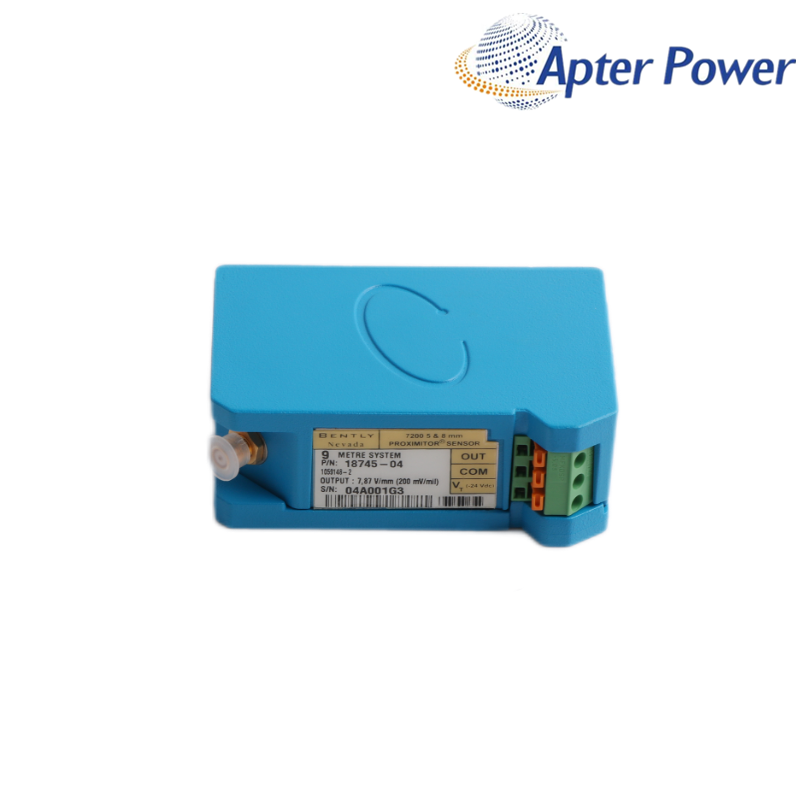

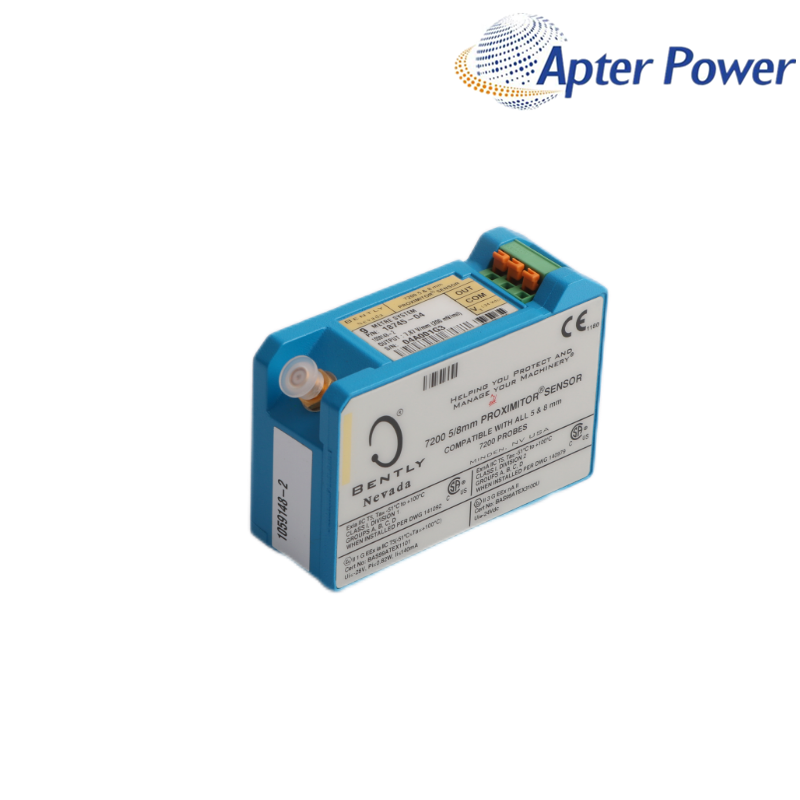

18745-04 is the Bently Nevada Proximitor Sensor option for a 9 m 7200 Series 5 mm or 8 mm proximity-transducer system. It works with a matching probe and extension cable whose combined electrical length forms the specified nine-metre system.
18745-04 converts the compatible probe system response into the voltage signal used by supported monitoring equipment. It must not be selected only because the connectors fit: the probe lead, extension cable and Proximitor length designation must agree.
Nine-metre system matchingThe 04 option is the Proximitor Sensor designated for the 9 m system configuration. |
5 mm / 8 mm family roleThe same documented Proximitor type serves the compatible 7200 Series 5 mm and 8 mm probe systems. |
Remote monitor connectionThe Proximitor output can be routed to the monitor over the manufacturer-defined three-conductor shielded cable. |
The probe plus extension cable must form the system length assigned to the Proximitor. A 5 m chain belongs with the 03 option, while this 04 unit is for 9 m. Stop and identify both cable lengths before connecting or calibrating.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 7200 Series |
| System type | 5 mm / 8 mm non-contacting proximity transducer system |
| Product role | Proximitor Sensor |
| System-length selection | 04 = 9 m combined probe and extension-cable system |
| Related 5 m option | 18745-03 |
| Monitor compatibility context | 3300/9000 monitors as documented |
| Proximitor-to-monitor cable | Three-conductor shielded cable |
| Maximum documented monitor distance | Up to 1000 ft (305 m) |
Commercial packing weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Compatibility & InteroperabilityMatch the probe family and the combined probe-plus-extension length to the 9 m Proximitor designation. The separate long run from the Proximitor to the monitor does not change the calibrated probe-system length. |
Monitoring & DiagnosticsAfter maintenance, confirm total system length, connector seating, probe gap and target condition before changing monitor scaling. These checks isolate physical chain changes from downstream monitor issues. |
Complete-chain selection: Send the probe and integral-lead number, extension-cable code, required total system length, monitor type, armor need and photographs of every label in the installed chain.
No. This is the 9 m Proximitor option, while the 5 m chain uses the corresponding 5 m interface. Add the probe-lead and extension-cable lengths from their labels before selecting the Proximitor.
Yes, but use the manufacturer extension cable that makes the probe-plus-extension total exactly 9 m. Do not splice the lead or add general-purpose cable; if the available lengths do not produce the required total, stop and select a different official configuration.
A mismatched total cable length, incompletely seated connector, changed probe gap or target disturbance can shift the chain response. Verify those four items in order and restore the physical setup before changing monitor scaling or calibration.
The documented 7200 system supports the applicable 5 mm and 8 mm families, but connector fit is not enough. Confirm the probe family, integral-lead length, extension-cable code and 9 m system designation before reuse.
No. Keep the calibrated probe-plus-extension chain at 9 m and extend only the separate shielded wiring from the Proximitor to the monitor within the manufacturer limit. Do not lengthen the probe chain to solve cabinet distance.
Provide the full Proximitor code, probe number and integral-lead length, extension-cable number, required total system length, monitor type and clear photographs of all three component labels.
Product identity and technical statements were checked against Bently Nevada 7200 Series 5 mm and 8 mm Proximity Transducer System technical and ordering information. Verify the complete installed nameplate, revision, companion components and project drawing before commissioning.
