Five-metre system
Use the 03 option with a supported probe and extension-cable combination whose combined system length is 5 m.
Item NO.:
18745-03Order(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
8.6x3.4x6.9cmDescription:
5 m System 7200 Proximitor SensorPrice:
AskA legacy 7200 Series Proximitor sensor calibrated for a combined 5 m probe-and-extension-cable system using supported 5 mm or 8 mm probes.

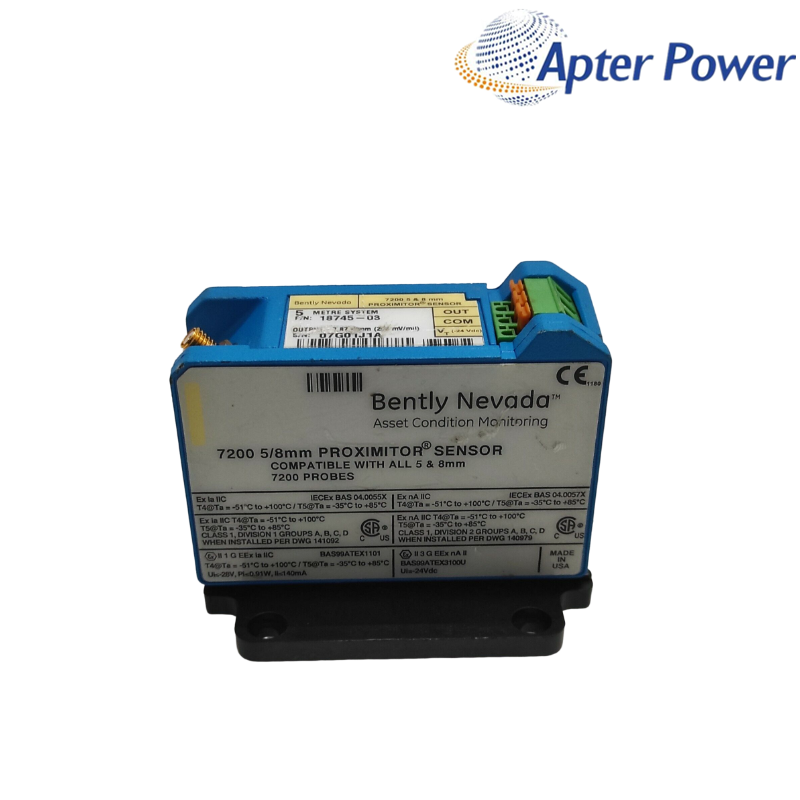

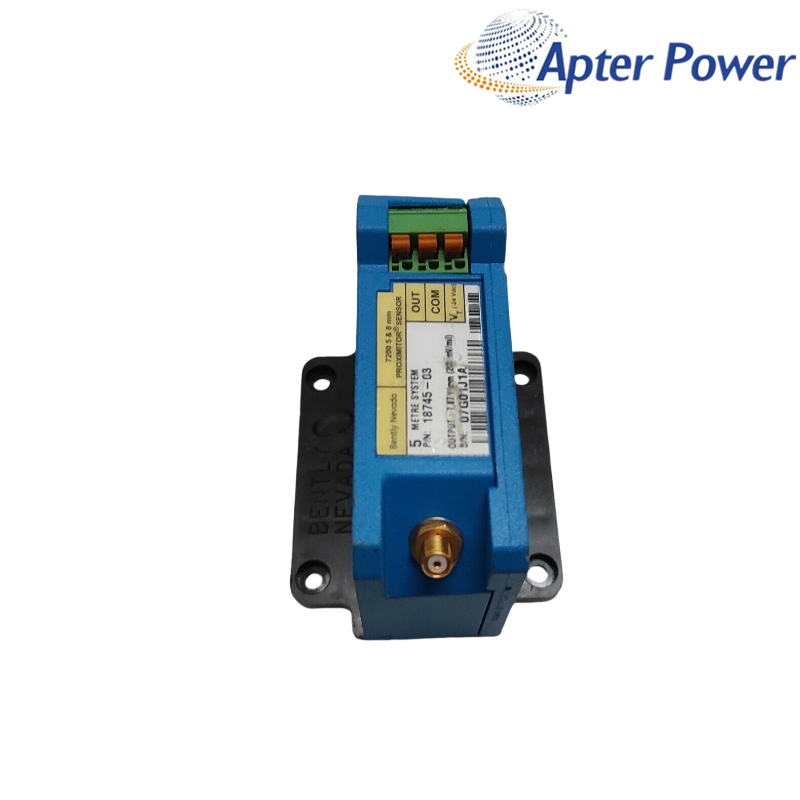

Bently Nevada 18745-03 is a 7200 Series Proximitor sensor for supported 5 mm and 8 mm proximity probes. The 03 ordering option identifies a combined probe-and-extension-cable system length of 5 m.
The Proximitor sensor supplies the signal-conditioning stage of the non-contact proximity measurement chain. Reliable maintenance depends on keeping the 5 m electrical length and the supported 7200 probe and extension-cable combination together rather than choosing the sensor by housing appearance.
Use the 03 option with a supported probe and extension-cable combination whose combined system length is 5 m.
Match the installed 7200 probe and cable labels because the sensor belongs to the legacy 5 mm and 8 mm system family.
Treat the probe, extension cable and Proximitor sensor as one calibrated non-contact displacement system.
Record the probe, extension-cable and 18745-03 labels together with terminal wiring and the existing channel baseline.
Keep coaxial connections clean, preserve the combined 5 m system length and retain the established mounting and grounding practice.
Confirm gap voltage and channel response with the plant 7200 commissioning procedure before returning protection functions to service.
| Product family | 7200 Series 5 mm / 8 mm proximity transducer system |
|---|---|
| Component role | Proximitor sensor / signal conditioner |
| System-length option | 5 m combined probe and extension cable |
| Supported probe family | 7200 Series 5 mm and 8 mm probes |
| Measurement principle | Non-contact eddy-current proximity measurement |
| Typical measurement tasks | Shaft vibration and position |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A legacy-system replacement for rotating-machinery channels that already use a 7200 Series 5 mm or 8 mm probe and a combined 5 m probe-and-extension-cable arrangement.
Yes, the 03 option is identified for a 5 m combined probe and extension-cable system when the remaining components belong to the supported 7200 5 mm or 8 mm family.
A direct swap is not recommended because the 03 and 04 options are calibrated for different combined system lengths.
The 7200 probe family, extension cable, combined 5 m length and monitoring-channel context should remain consistent with the installed system.
An incorrect combined cable length, contaminated coaxial connection, changed probe gap or wiring issue elsewhere in the loop can influence the channel response.
The complete label and 5 m system option provide a safer identity match because related legacy Proximitor sensors can share a similar enclosure.
Please send the Proximitor, probe and extension-cable labels, terminal and connector photos, quantity, delivery country and required date.
Labels and installed context are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around your shutdown plan.
Coverage begins on the shipment date unless the confirmed quotation states otherwise.
Coverage and available remedy follow the confirmed quotation and sales agreement.
We carefully review technical documents to match your exact hardware version. Send us a clear photo of the complete product label and tell us whether you need a datasheet, user manual or wiring diagram.
|
