Front / rear pairing
Verify the 1701/15 front monitor and its exact rear I/O module before moving field wiring.
Item NO.:
1701/15Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
FIELD MONITORPrice:

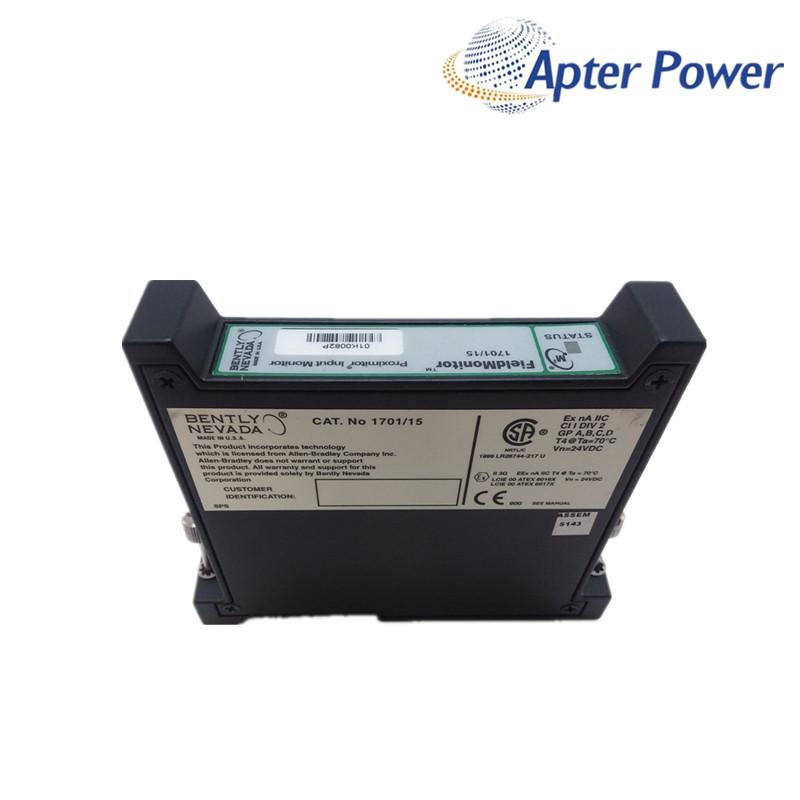

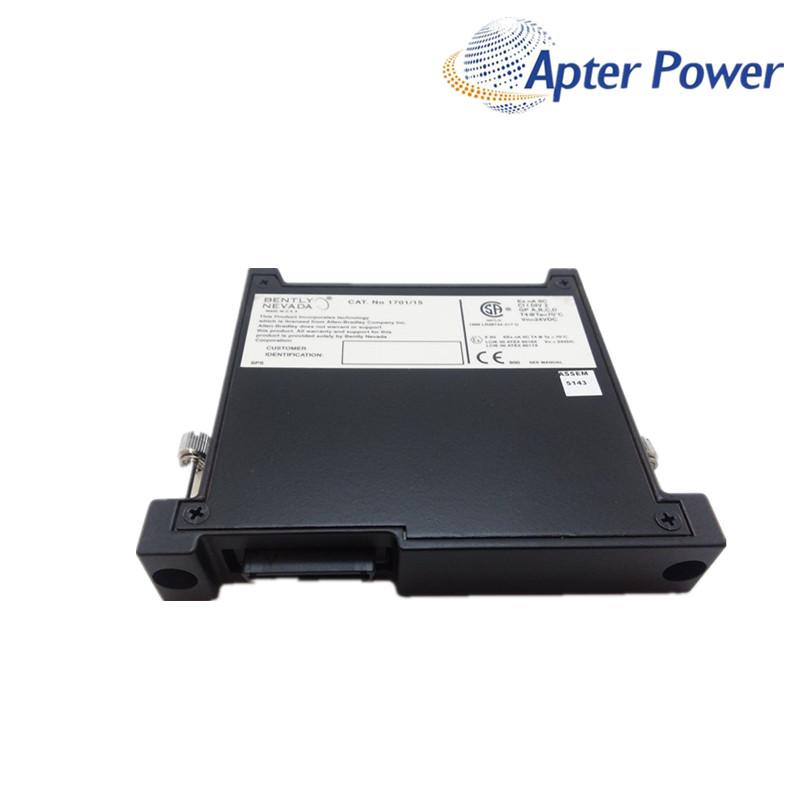

AskA two-channel 24 VDC FieldMonitor for Proximitor-based radial vibration, position and thrust measurements.
1701/15 is identified as a two-channel 24 VDC FieldMonitor for Proximitor-based radial vibration, position and thrust measurements.
For 1701/15, the full coded configuration and its connected system should be checked together. A matching connector or similar appearance does not establish interchangeability.
Before quoting 1701/15, provide the complete label and photos of the mounting point, cable route and connected equipment so the selected part can be verified against the installed chain.
Verify the 1701/15 front monitor and its exact rear I/O module before moving field wiring.
Record each channel function, transducer family, alarm setpoints and enabled maintenance inputs.
Treat 1701/15 as an installed-system replacement task; similar FieldMonitor hardware is not automatically interchangeable.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 1701 FieldMonitor |
| Product type | Proximitor Input Monitor |
| Channel count | 2 |
| Power input | 24 VDC |
| Supported measurement context | Radial vibration, gap or radial position, and thrust position |
| Input architecture | External Proximitor or supported acceleration interface through the matched rear I/O module |
| Configuration boundary | Channel function, transducer family and alarm settings must match the installed application |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The front model identifies the monitor, but replacement selection also depends on the rear I/O module, channel duties and connected transducer systems. Front and rear nameplate details are required for verification.
Supply scope must be confirmed in the quotation. Specify whether the requirement is for the front monitor, the rear I/O module, or the matched pair.
Interchangeability requires confirmation of the rear I/O type, both channel functions, transducer family and terminal arrangement. A similar front panel does not establish compatibility.
Provide clear front and rear nameplate photos, both channel applications, connected probe or Proximitor details, required quantity and delivery country.
Document availability and the applicable revision are confirmed against the complete nameplate and project requirements when the quotation is prepared.
The supplied product is covered for 12 months under ApterPLC's sales terms. Retain the product nameplate, packaging and transaction record for warranty assessment.
|
