Selection
- Use only where the reverse-mount housing and front-only environmental exposure match the design.
- Do not select it when the rear of the probe will also see destructive fluid or gas.
Item NO.:
146055-10-02-00Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.25KGDimension:
7.8x3x6.2cmDescription:
BENTLY NEVADAPrice:

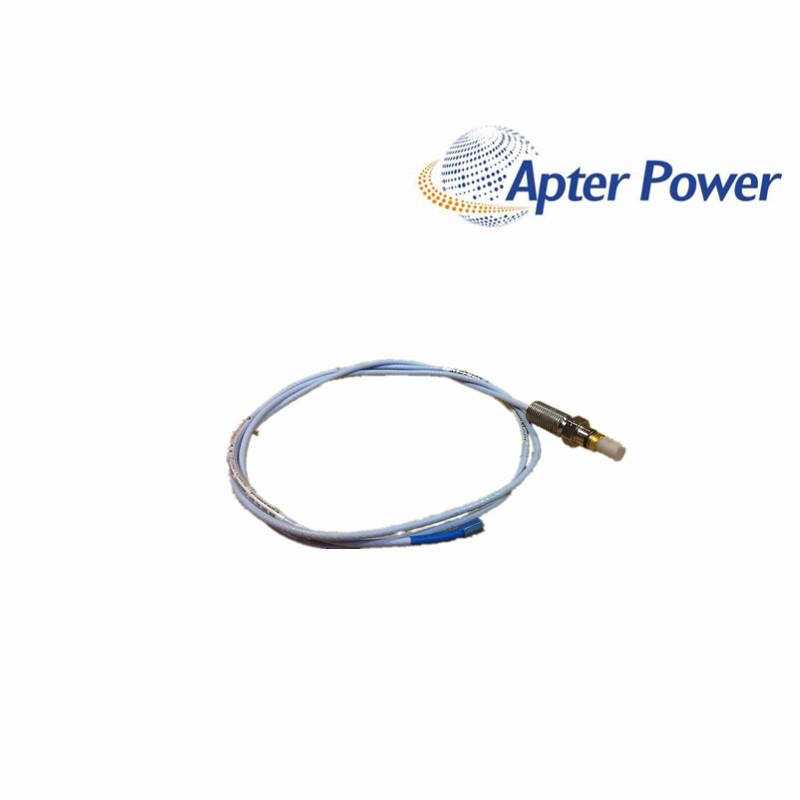

AskA 1.0 m ceramic-capped 3/8-24 UNF reverse-mount probe for corrosive or high-pressure front-end exposure.
Corrosive gas, liquid or elevated front-side pressure can rule out a conventional probe tip. The alumina ceramic cap on 146055-10-02-00 is designed for that harsher process interface and is rated for front-end exposure up to 34 bar in a compatible reverse-mount housing.
A recommended 1.0 mm electrical gap places 146055-10-02-00 within its 1.52 mm linear range without loading the ceramic tip mechanically. Its 1.0 m standard lead and miniature ClickLoc connector support the familiar 3300 installation approach on the dry side.
Only the front ceramic-to-metal interface is environmentally sealed; the rear of 146055-10-02-00 remains vulnerable to water, ammonia, ammonium hydroxide and hydrogen sulfide. The housing arrangement therefore needs to keep the cable exit and rear side isolated from the process.
Use it when the probe front must face corrosive gas, liquid or pressure up to the documented 34 bar while retaining a compatible reverse-mount housing. The application must keep the rear side out of the destructive environment.
Mount it in the intended 31000 or 21000 housing, keep the cable exit and rear dry, and route the connector outside water, ammonia, ammonium hydroxide or hydrogen-sulfide exposure.
Not without engineering review. Its ceramic cap, reverse-mount geometry, 1.52 mm range and shifted response curve affect housing fit, gap setting and monitor configuration.
Set the recommended 1.0 mm gap electrically without touching the ceramic tip. Record gap voltage, housing, process condition, monitor settings and the stable machine baseline.
Inspect the ceramic-to-metal interface, rear dry-side condition, cable and connector. Recheck gap and channel response before return to service; rear exposure requires special attention even if the front looks intact.
Verify the reverse-mount housing, 1.0 m lead, connector option 02, front-side chemical and pressure exposure, and that the rear can remain environmentally isolated.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the ceramic-capped reverse-mount probe construction, pressure and temperature limits, 1.0 m lead option, connector code and dimensional drawings.
