Item NO.:
140471-01Order(MOQ):
1Goods Stock:
36Payment:
T/TLead Time：
In stockWeight:
0.36KGDimension:
2.5x11x24cmDescription:
PROXIMITOR SEISMIC MONITORPrice:
AskBently Nevada · Verified configuration
3500/42M Proximitor/Seismic Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

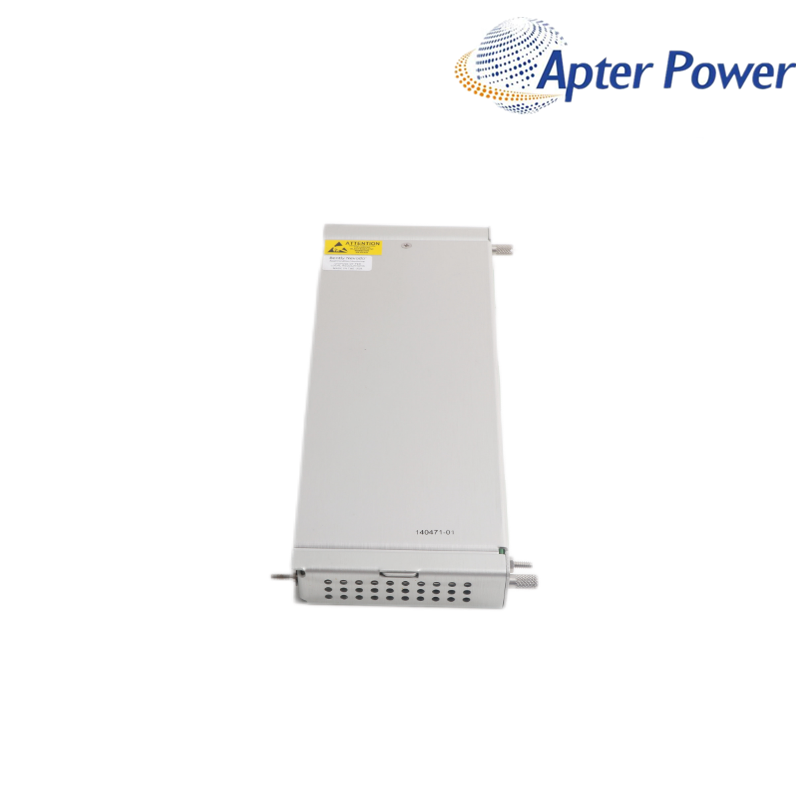

140471-01 is the internal-termination Prox/Velom rear I/O module for the Bently Nevada 3500/42M Proximitor/Seismic Monitor. It connects the manufacturer-supported Prox/Accel, Velomitor, or HTVS input configurations to the four-channel monitor path.
140471-01 is selected when field wiring terminates directly at the rack. The exact transducer type and associated channel configuration remain essential because proximity and seismic devices use different signal, power, sensitivity, and alarming contexts.
Supports the specified Prox/Accel, Velomitor, or HTVS input configurations.
Provides the rear signal interface for the four-channel 3500/42M monitor.
Field wiring lands directly at the rear I/O module.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 140471-01 |
| Product family | 3500/42M Proximitor/Seismic Monitor |
| Module role | Rear Prox/Velom I/O module |
| Supported input families | Prox/Accel, Velomitor, or HTVS |
| Termination | Internal |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 95%, noncondensing |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.20 kg |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
A matching connector does not prove that the installed sensor type and channel power/configuration are correct. An incorrect selection can give unusable or misleading vibration data. Verify the transducer model, sensitivity, wiring, and 3500 configuration before startup.
Confirm an internal-termination arrangement in which field wiring lands at the rear I/O module. Do not plan to reuse an external termination block with this option.
Document each approved Prox/Accel, Velomitor or HTVS input, its sensitivity and power needs, and the permitted channel pairing in the rack configuration.
Record terminal positions, transducer identities and sensitivities, polarity, shields, channel assignments, front-module number, and saved configuration.
Verify front-and-rear pairing, transducer type and power selection, terminal wiring, channel configuration, and live signal behavior.
Check sensor power and signal, terminal wiring and polarity, channel type and sensitivity, front-module status, and module seating before replacing hardware.
Provide the front 3500/42M number, transducer models by channel, internal-termination requirement, quantity, condition, destination, and labels.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Bently Nevada 3500/42M Proximitor Seismic Monitor Datasheet · document 143694 Rev. AE. The complete manufacturer document is provided as a site-hosted PDF.
OPEN 140471-01 DATASHEET (PDF)Related Tags :
