Item NO.:
138708-01Order(MOQ):
1Goods Stock:
37Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
2.5x11.2x24.2cmDescription:
I/O MODULEPrice:
AskBently Nevada · Verified configuration
3500/42M Proximitor/Seismic Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

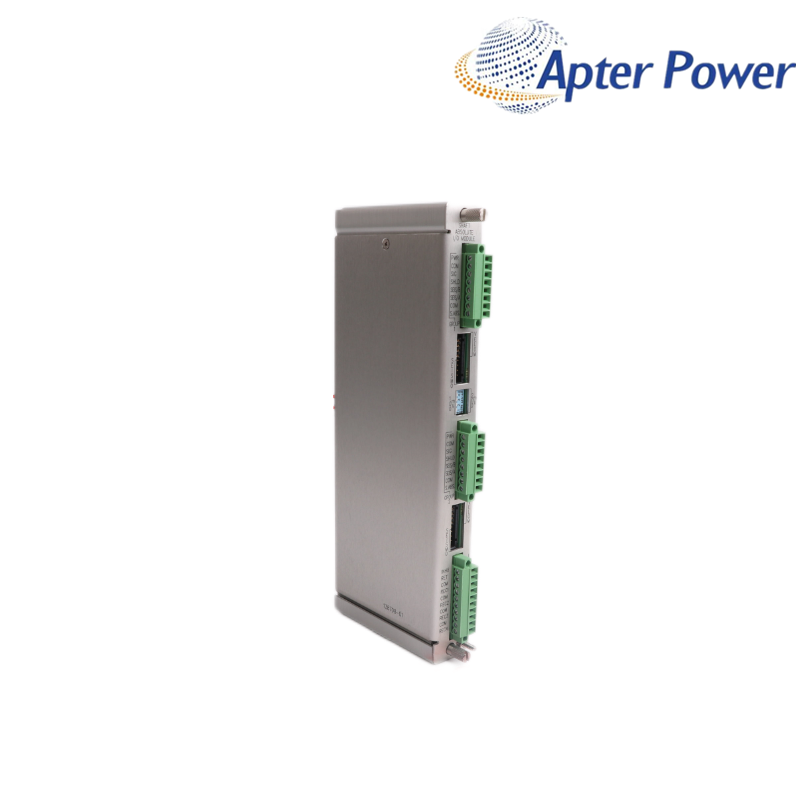

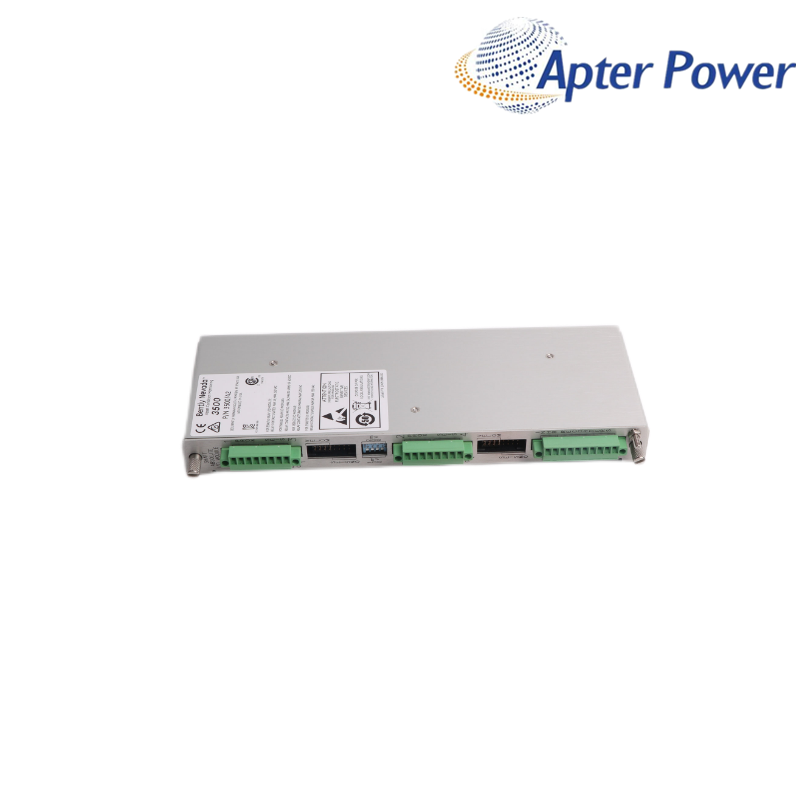

138708-01 is the internal-termination Shaft Absolute I/O module for the Bently Nevada 3500/42M Proximitor/Seismic Monitor. It supports the manufacturer-defined combination of proximity and seismic transducer inputs used to derive shaft-absolute motion within the 3500 monitoring system.
138708-01 is not a general four-channel Prox/Velom module. Its channel pairing and transducer-supply arrangement are specific to shaft-absolute measurement, so the probe, velocity/seismic transducer, front monitor, firmware, and channel configuration must be checked as one measurement chain.
Supports the paired proximity and seismic inputs used for shaft-absolute monitoring.
Supports the manufacturer-listed Prox/Accel with Velomitor or Seismoprobe arrangements.
Transducer wiring terminates directly at the rear I/O module.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 138708-01 |
| Product family | 3500/42M Proximitor/Seismic Monitor |
| Module role | Rear Shaft Absolute I/O module |
| Termination | Internal |
| Supported input families | Prox/Accel with Velomitor or Seismoprobe |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 95%, noncondensing |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.20 kg |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
Shaft-absolute monitoring depends on the approved proximity/seismic pairing and channel configuration. Treating the module as a generic vibration input can produce an invalid measurement. Verify transducers, power selection, firmware, and rack configuration before enabling alarms.
Choose it when the approved configuration requires shaft-absolute motion derived from the manufacturer-supported proximity and seismic input pairing.
Match the exact proximity and seismic transducer types, sensitivities, power selection, channel pairing, orientation and polarity to the rack configuration.
Save the rack configuration and record both transducer identities, sensitivities, channel pairing, vector settings, alarms, and front-and-rear numbers.
Validate both contributing channels independently, then confirm their configured relationship and resulting shaft-absolute value before enabling alarms.
Check both sensor signals, orientation and polarity, sensitivity, power selection, channel pairing, and vector configuration before replacing hardware.
Provide the front 3500/42M number, both transducer models and sensitivities, pairing and configuration context, quantity, condition, destination, and labels.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Bently Nevada 3500/42M Proximitor Seismic Monitor Datasheet · document 143694 Rev. AE. The complete manufacturer document is provided as a site-hosted PDF.
OPEN 138708-01 DATASHEET (PDF)Related Tags :
