Item NO.:
136711-01Order(MOQ):
1Goods Stock:
37Payment:
T/TLead Time：
In stockWeight:
0.92KGDimension:
2.5x18.5x24.2cmDescription:
I/O MODULEPrice:
AskBently Nevada · Verified configuration
3500/60 Temperature Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

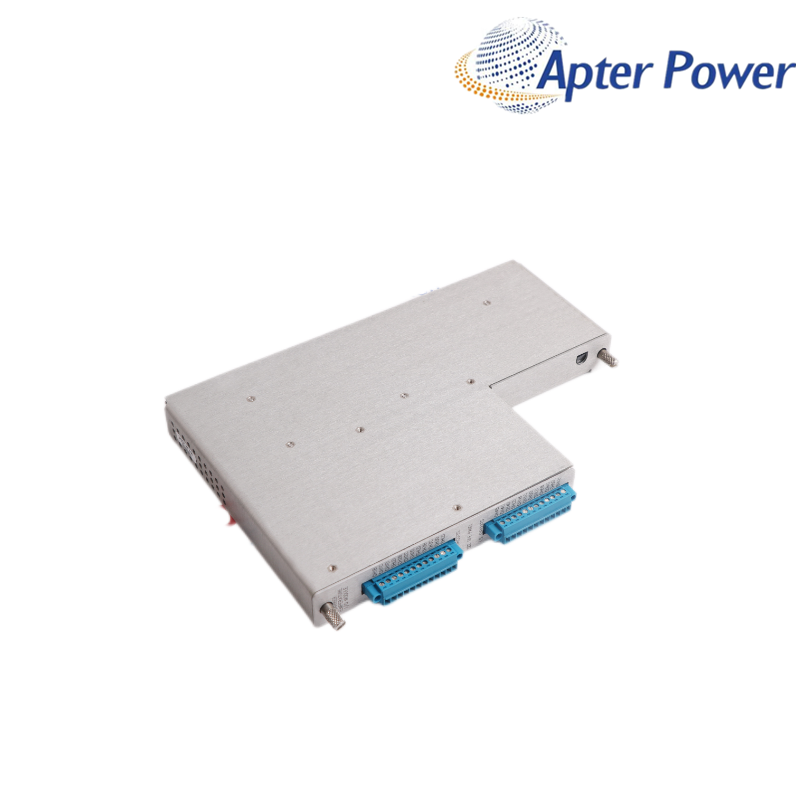

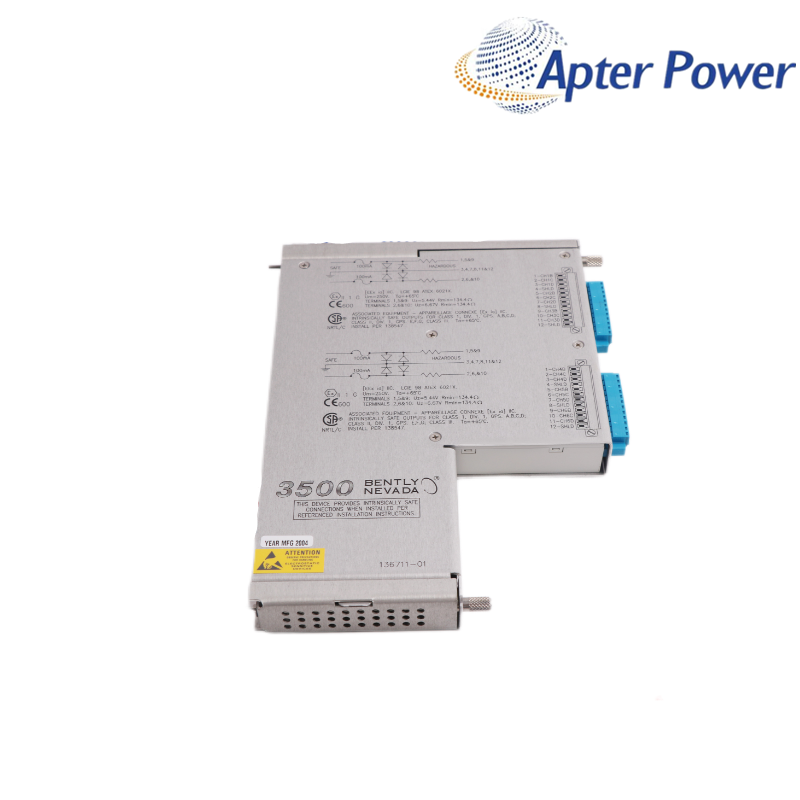

136711-01 is the internal-barrier, internal-termination I/O module for the Bently Nevada 3500/60 Temperature Monitor. It brings RTD or thermocouple signals into six monitoring channels while incorporating the internal barriers required by the approved intrinsically safe installation.
136711-01 combines temperature acquisition with a specific rack-safety architecture. Its deeper barrier assembly, restricted operating range, rack earthing requirement, field-loop approvals, and sensor configuration must be reviewed together before it is used in a protection system.
Supports up to six RTD or thermocouple inputs through an internal-barrier arrangement.
Barrier functionality is built into the rear I/O assembly for the approved field-loop design.
Sensor circuits terminate at the barrier I/O module inside the rack.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 136711-01 |
| Product family | 3500/60 Temperature Monitor |
| Module role | Rear I/O module with internal barriers |
| Input configuration | RTD/TC, non-isolated |
| Channel capacity | 6 channels |
| Termination | Internal |
| Rack accessory | 3500/04 IS Earthing Module required in each rack containing internal barriers |
| Rack position | One full-height rear slot |
| Operating temperature | 0°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Official module dimensions | 241.3 × 24.4 × 163.1 mm |
| Official module mass | 0.46 kg |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
The manufacturer requires the internal barriers to be used with the specified rack earthing arrangement. A missing 3500/04 IS Earthing Module or unverified loop parameters can invalidate the safety design. Stop work until the hazardous-area documentation is complete.
Confirm the manufacturer-required 3500/04 IS Earthing Module and the approved internal-barrier installation. Stop if the earthing or loop documentation is incomplete.
Document every sensor type, lead arrangement or polarity, channel range, and the approved intrinsically safe loop parameters before configuration.
The internal-barrier module is deeper than the standard temperature I/O format. Confirm rack depth, access and cable space before scheduling replacement.
Verify the barrier and earthing-module identities, sensor wiring, loop grounding, front monitor, channel configuration, and approved installation conditions.
Check sensor type, polarity or lead wiring, loop continuity, barrier terminals, grounding, channel range, and front-module status without bypassing the barrier.
Provide the front 3500/60 number, sensor types, rack earthing arrangement, loop and area data, quantity, condition, destination, and labels.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Bently Nevada 3500/60 and 3500/61 Temperature Modules Datasheet · document 141540 Rev. L. The complete manufacturer document is provided as a site-hosted PDF.
OPEN 136711-01 DATASHEET (PDF)Related Tags :
