Item NO.:
136483-01Order(MOQ):
1Goods Stock:
37Payment:
T/TLead Time：
In stockWeight:
0.44KGDimension:
2.5x11x24cmDescription:
I/O MODULEPrice:
AskBently Nevada · Verified configuration
3500/62 Process Variable Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

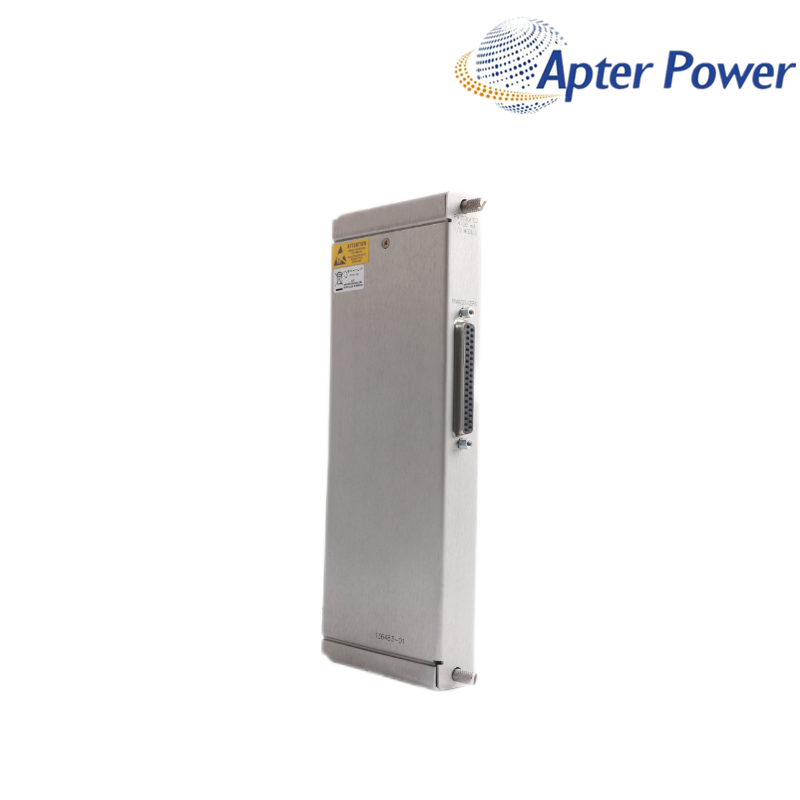

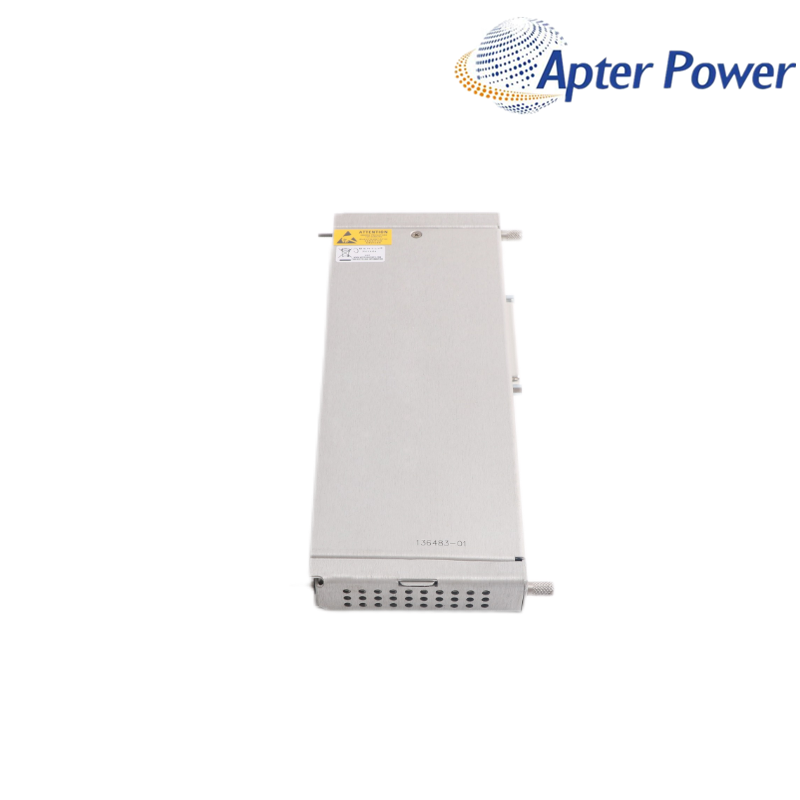

136483-01 is the external-termination, isolated 4–20 mA rear I/O module for the Bently Nevada 3500/62 Process Variable Monitor. It accepts six process-current inputs so variables from compatible transmitters can be monitored through the 3500 rack.
136483-01 is chosen where channel isolation and remote termination are part of the approved control design. The external termination block, cable, front monitor, transmitter loop power, and signal scaling must all be verified before the module can deliver meaningful process values.
Provides six inputs for the 3500/62 process-variable monitoring path.
The isolated I/O configuration provides the manufacturer-specified isolation boundary.
Separates field termination from the rack through a dedicated block-and-cable arrangement.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 136483-01 |
| Product family | 3500/62 Process Variable Monitor |
| Module role | Rear I/O module |
| Input signal | 4–20 mA |
| Channel capacity | 6 channels |
| Isolation | 500 V |
| Input impedance | 50 Ω |
| Termination | External |
| Typical system power | 7 W |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 95%, noncondensing |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.20 kg |
| Required system items | Compatible external termination block and cable, ordered separately |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
The module expects the approved isolated 4–20 mA and external-termination architecture. Incorrect loop power, scaling, or termination hardware can produce invalid process values. Verify the transmitter loop drawing and termination parts before enabling alarms.
Confirm an isolated 4–20 mA transmitter loop and its power arrangement. Do not adapt an unverified voltage input to this current-input option.
Match the approved 3500/62 termination block, interconnecting cable, complete part numbers, cable length, and project pinout.
Follow the site isolation procedure, record loop power and polarity, save channel scaling and alarms, and label every external terminal before disconnection.
Verify transmitter power, loop continuity and polarity, external block and cable, front-and-rear pairing, and the configured 4–20 mA scale.
Check transmitter output and power, loop continuity and polarity, cable seating, channel scaling, and the correct isolated-current input selection.
Provide the front 3500/62 number, transmitter and loop type, termination block and cable codes, quantity, condition, destination, and labels.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
Bently Nevada 3500/62 Process Variable Monitor Datasheet · document 141541 Rev. R. The complete manufacturer document is provided as a site-hosted PDF.
OPEN 136483-01 DATASHEET (PDF)Related Tags :
