3500/93 System Display
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

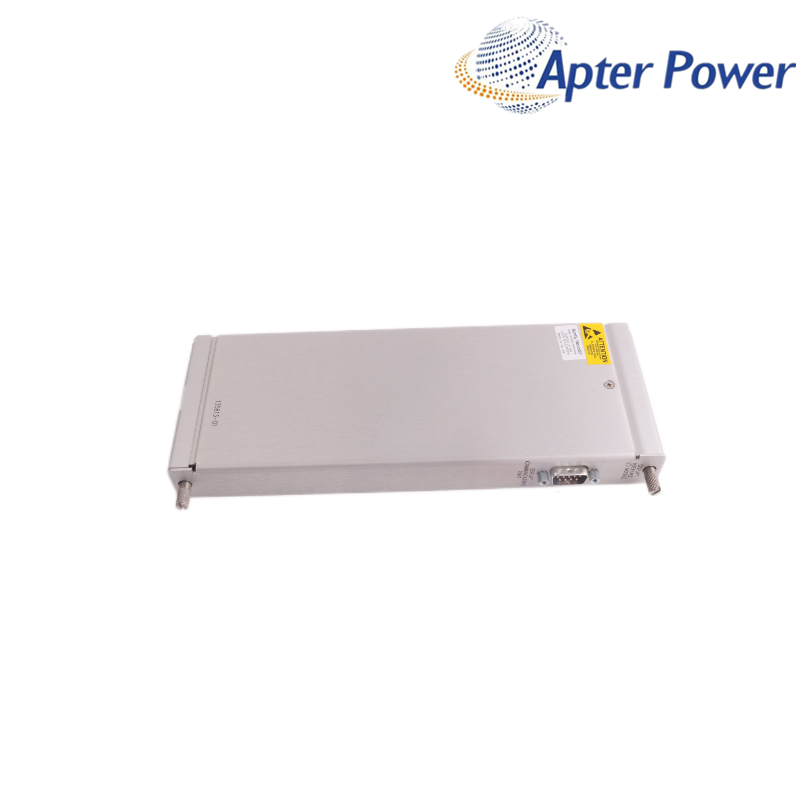

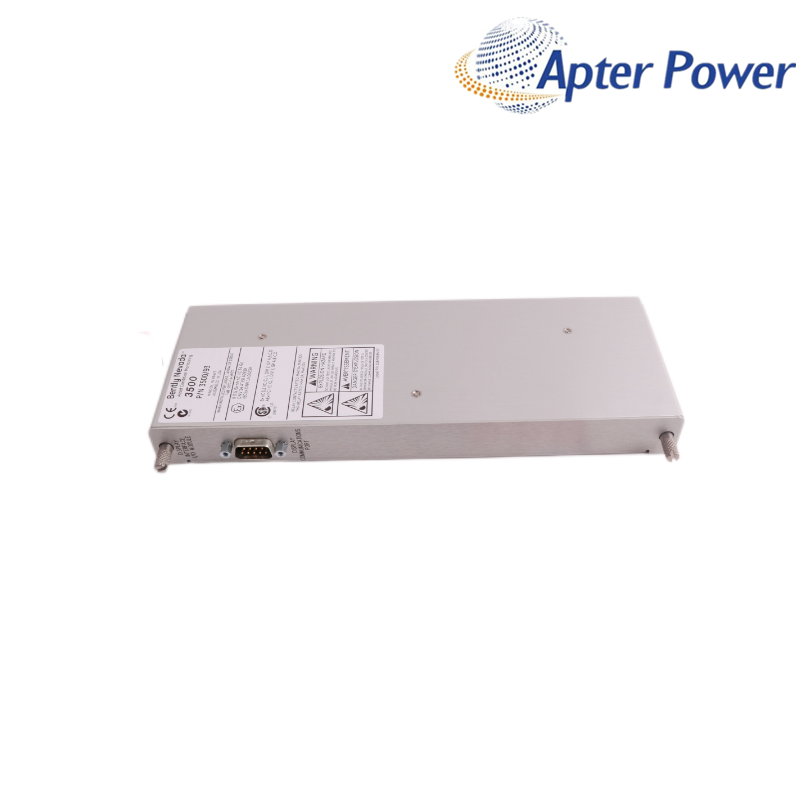

135813-01 is the rear-slot Display Interface I/O Module used with the Bently Nevada 3500/93 System Display. It provides the rack-side interface through which the display presents rack, channel, alarm, and event information to operators.
135813-01 belongs to a coordinated 3500/93 display assembly rather than acting as a stand-alone display. Selection requires confirmation of the corresponding front Display Interface Module, display unit, rack slot allocation, RS422 connection, and saved display configuration.
Links the 3500 rack to the 3500/93 System Display through the defined display-interface path.
Enables the display system to present channel/module data and alarm or system event lists.
The display arrangement is configured with 3500 Rack Configuration Software.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 135813-01 |
| Product family | 3500/93 System Display |
| Module role | Rear Display Interface I/O Module |
| Display communication | RS422 |
| Typical channel update | 1 second |
| Configuration tool | 3500 Rack Configuration Software |
| Display capacity | Up to two displays per rack |
| Rack position | One full-height rear slot |
| Front-slot relationship | Each display requires an empty front slot for the corresponding Display Interface Module |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 95%, noncondensing |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.38 kg |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
135813-01 is the rear I/O element, not the complete 3500/93 display system. Ordering only this part will not provide a working operator display. Verify the display unit, front interface module, cabling, rack slot, and configuration before purchase.
Treat it as the rear Display Interface I/O module. Confirm the separate front interface module, display unit, and interconnecting hardware required by the installed system.
Confirm the associated front and rear slot positions and the cable route to the display before the outage. Stop if the rack layout cannot support the documented assembly.
Record the RS422 cable, connector and route, the display identity, and the front interface-module configuration so the rack-side link can be matched.
Save the display configuration and record rack, channel and alarm presentation settings, cable identifiers, front-module number, and display details.
Check front and rear module status, RS422 cable seating and continuity, display power, and the saved configuration before replacing the I/O module.
Send the front interface-module and display identities, rack and slot, RS422 cable details, quantity, condition, destination, and clear labels.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
The exact ordering item belongs to the Bently Nevada 3500/93 System Display. Request the applicable manufacturer document for the delivered configuration before installation, replacement or commissioning.
