3500/40M rear I/O pairing
The exact spare role aligns with the 3500/40M Proximitor Monitor, helping buyers avoid mixing front and rear hardware from different monitor arrangements.
Rear I/O hardware for the 3500/40M Proximitor Monitor, designed for approved intrinsically safe rack installations.
Item NO.:
135489-04Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.8KGDimension:
2.6x25.3x24cmDescription:
MONITOR MODULEPrice:
AskFast, accurate industrial sourcing - share the model, quantity and delivery country.
Rear I/O hardware for the 3500/40M Proximitor Monitor, designed for approved intrinsically safe rack installations.

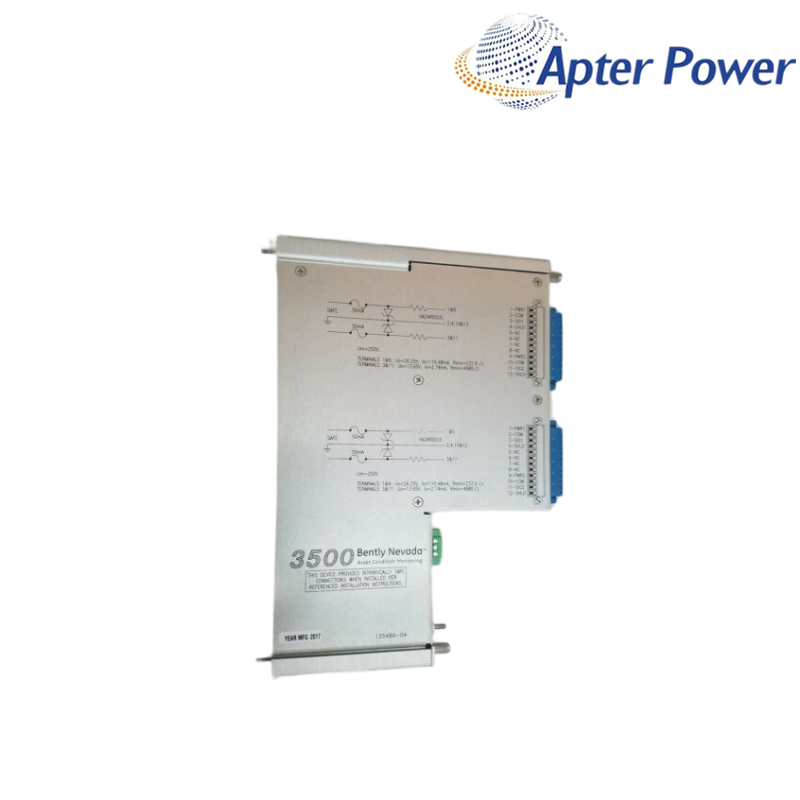

Bently Nevada 135489-04 is the rear I/O module with internal barriers and internal terminations for the 3500/40M Proximitor Monitor. It brings the intrinsic-safety interface into the 3500 rack while retaining the monitor's established channel architecture.
For an existing 3500 installation, Bently Nevada 135489-04 supports a precise spare decision when the front monitor, rear module and intrinsically safe rack design agree. ApterPLC can review these elements together so buyers receive the correct I/O role and the required earthing arrangement is included in the project scope.
The exact spare role aligns with the 3500/40M Proximitor Monitor, helping buyers avoid mixing front and rear hardware from different monitor arrangements.
Internal barriers support an approved intrinsically safe transducer installation when the rack includes the required IS Earthing Module and follows the applicable installation documentation.
The built-in termination arrangement suits racks already designed around internal field connections and keeps the replacement scope clear.
For a faster and more accurate 135489-04 quotation, please share the rear-module label, paired 3500/40M monitor, rack position and the installed IS Earthing Module. Our team can use these details to match the correct spare role and identify any hazardous-area documentation needed for the project.
| Product role | 3500/40 I/O module with internal barriers |
|---|---|
| Termination arrangement | Internal terminations |
| Compatible monitor family | 3500/40M Proximitor Monitor |
| Rack position | Rear I/O position paired with the front monitor slot |
| Barrier application | Supported intrinsically safe proximity-transducer circuits |
| System platform | Bently Nevada 3500 Machinery Protection System |
| Selection focus | Monitor family, rack slot, termination style and hazardous-area design |
| Product category | Rack I/O and intrinsic-safety interface hardware |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Baker Hughes requires an IS Earthing Module in every 3500 rack that contains internal barriers. This prerequisite protects the intended intrinsic-safety design and belongs in the replacement scope.
The 135489 spare numbers serve different monitor and channel arrangements. Matching the rear module to the paired front monitor helps prevent a visually similar but functionally different I/O selection.
Used in approved 3500 machinery-protection racks where a 3500/40M monitor operates with internal-barrier I/O, internal field terminations and the required IS Earthing Module.
It should not be treated as a complete internal-barrier installation on its own. Baker Hughes requires an IS Earthing Module in every rack containing internal barriers, and our team can help include that requirement in the replacement scope.
We would not recommend treating the two spare numbers as interchangeable. The official spare table assigns them to different monitor and channel arrangements, so ApterPLC can compare the paired front monitor before quotation.
Yes, when the installed rack uses the documented internal-barrier and internal-termination arrangement. Sharing both module labels lets our team align the rear I/O spare with the existing monitor position.
No single module number establishes the complete installation. The applicable approvals, entity parameters, earthing and field wiring conditions must work together, and ApterPLC can help review the relevant project documents.
A one-part change is not a dependable conversion plan because internal barriers alter the rack's I/O and earthing architecture. We recommend an engineering review of the monitor, rear I/O, earthing module and approved installation drawing.
The strongest buying package pairs the rear-module label with the front 3500/40M label and the rack earthing arrangement. This lets ApterPLC prepare the quotation around the actual installed architecture and reduces avoidable outage delays.
Precise model supportClear model comparison helps reduce ordering risk and avoid preventable delays.
New original supplyCurrent, discontinued and hard-to-find automation parts for planned maintenance.
Responsive coordinationFast quotation, delivery support and practical post-purchase communication.
Manufacturer-recognized family names used in catalogs and service records.
Apter provides a 1-year warranty on every item we sell. Our team remains available for delivery coordination, receipt questions and after-sales communication.
Apter independently supplies industrial automation parts, including current and discontinued products. Product names, images and trademarks help customers identify the items they need and remain the property of their respective owners. Apter is not an authorized distributor or representative of those manufacturers.
The official Baker Hughes document below brings together the product role, technical specifications, selection context and relevant drawings for engineering and procurement review.
Need another revision, user manual or wiring document? Share the product label and tell us which file would help your project. Our team will assist with the most relevant available document.
|
