Item NO.:
133827-01Order(MOQ):
1Goods Stock:
30Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
2.5x11x24cmDescription:
I/O MODULE EXTERNAL TERMINATION MODULEPrice:
AskBently Nevada · Verified configuration
3500/60 Temperature Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

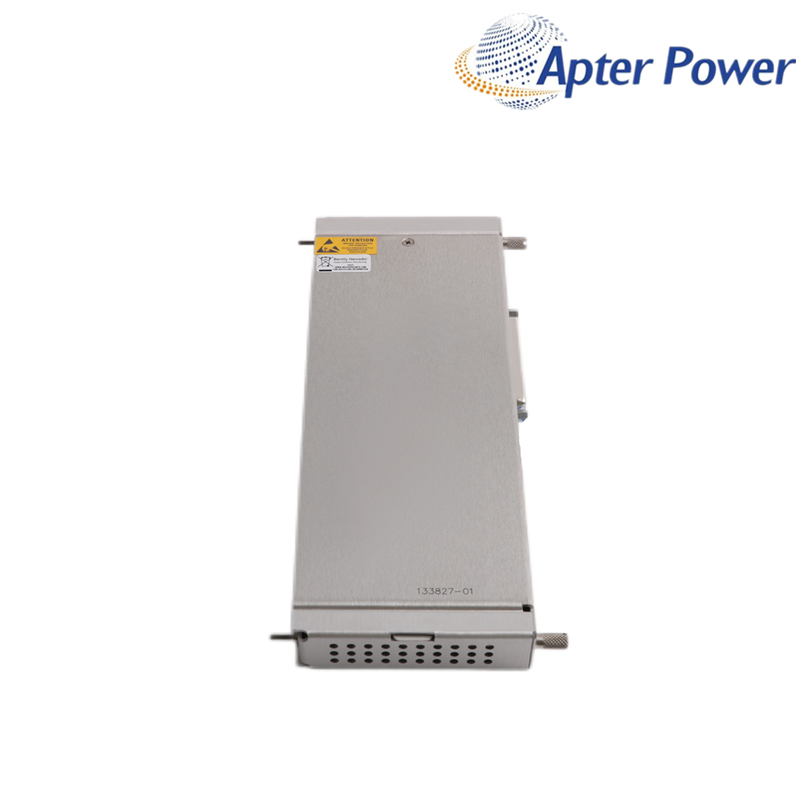

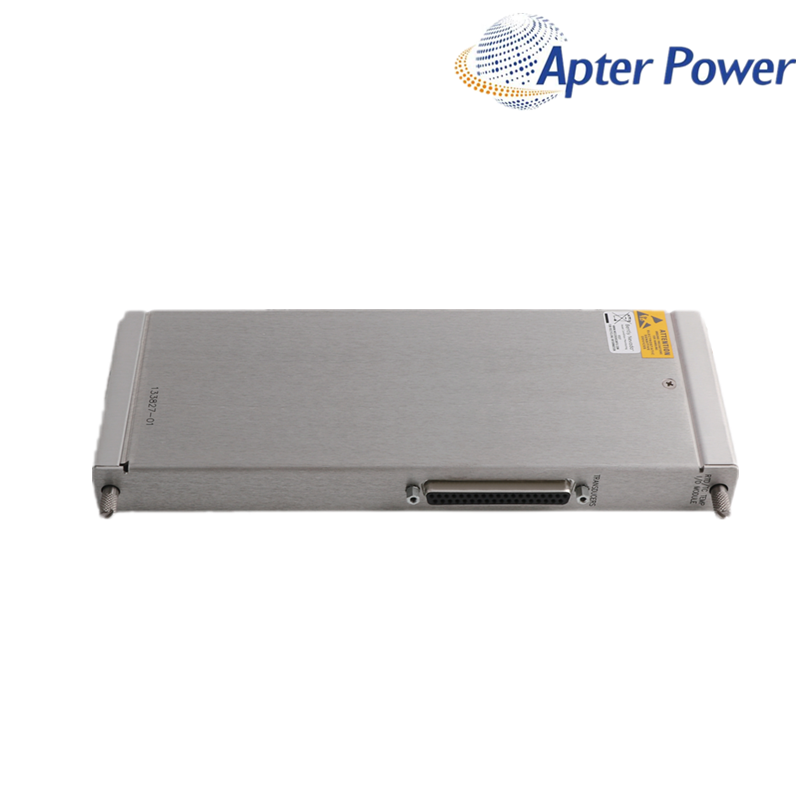

133827-01 is the external-termination rear I/O module for a Bently Nevada 3500/60 Temperature Monitor. It carries up to six RTD or thermocouple inputs while moving field termination away from the rack through the manufacturer-defined external termination arrangement.
133827-01 is intended for projects that deliberately use external termination hardware and cabling. Its engineering value is easier separation between rack electronics and field wiring, but the I/O module, termination block, cable, front monitor, and sensor configuration must be treated as one verified signal chain.
Uses manufacturer-defined external termination hardware rather than direct field wiring at the rack module.
Supports up to six temperature channels in the 3500/60 monitor path.
Supports RTD, thermocouple, or an allowed mixed-channel configuration.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 133827-01 |
| Product family | 3500/60 Temperature Monitor |
| Module role | Rear I/O module |
| Input configuration | RTD/TC, non-isolated |
| Channel capacity | 6 channels |
| Termination | External |
| Recorder outputs | Not provided on 3500/60 |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.45 kg |
| Required system items | Compatible external termination block and cable, ordered separately |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
The rear I/O module alone does not complete the field connection. Missing or mismatched termination hardware can stop commissioning or create incorrect channel wiring. Verify the approved termination block, cable, pinout, and front monitor before purchase.
It is the external-termination rear I/O option. Route field signals through the manufacturer-specified external block and interconnecting cable.
Confirm the exact termination-block and cable part numbers, cable length, connector type, and project pinout. Do not match these items by appearance.
Record channel numbers, sensor types, polarity or lead arrangement, shields, block terminals, cable number, front monitor, and saved configuration.
Verify the external block and cable, front-and-rear pairing, sensor types, channel configuration, and field continuity before enabling alarms.
Inspect the shared external cable and block, connector seating, rear-slot pairing, and front-monitor status before testing individual sensors.
Provide the front 3500/60 number, block and cable codes, sensor types, quantity, condition, destination, and photographs of all relevant labels.
