Item NO.:
133819-02Order(MOQ):
1Goods Stock:
30Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
2.5x11.2x24.2cmDescription:
I/O MODULEPrice:
AskBently Nevada · Verified configuration
3500/61 Temperature Monitor
Send the full part number, quantity, destination and available nameplate photos for a focused quotation review.

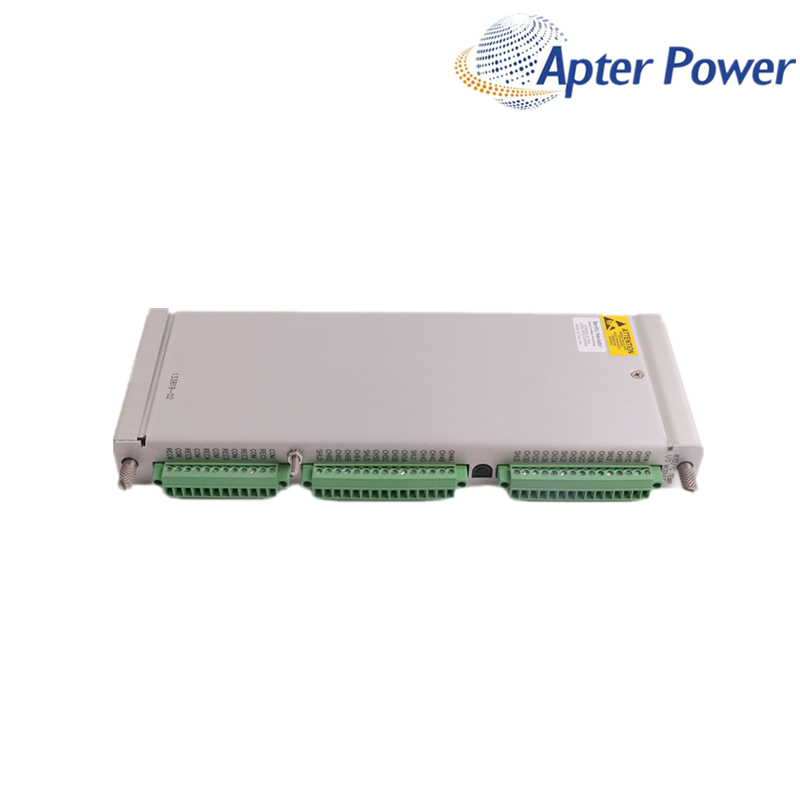

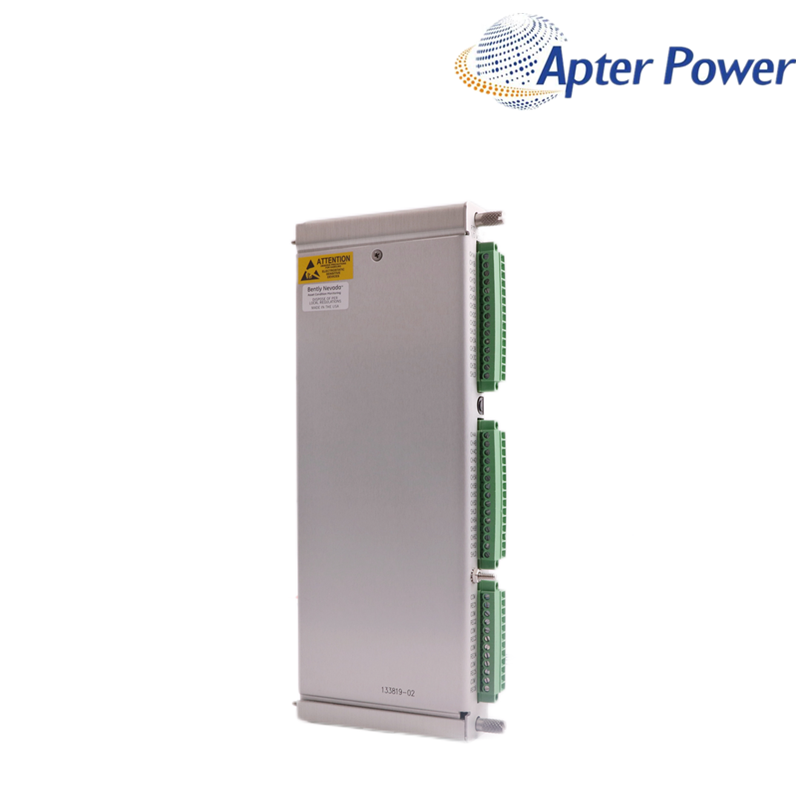

133819-02 is the internal-termination I/O module for the Bently Nevada 3500/61 Temperature Monitor. It accepts RTD and thermocouple field inputs and supports the six-channel temperature-monitoring path used by the front monitor.
133819-02 is distinguished from the closely related 3500/60 arrangement by the 3500/61 recorder-output function. Correct selection therefore depends on confirming both the front monitor and whether the project requires proportional recorder outputs in addition to temperature monitoring.
Pairs with the 3500/61 monitor configuration that provides proportional recorder outputs.
The non-isolated input design supports RTDs, thermocouples, or an allowed mix across six channels.
Field conductors terminate directly at the rear I/O module.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 133819-02 |
| Product family | 3500/61 Temperature Monitor |
| Module role | Rear I/O module |
| Input configuration | RTD/TC, non-isolated |
| Channel capacity | 6 channels |
| Termination | Internal |
| Recorder outputs | Supported through the 3500/61 configuration |
| Rack position | One full-height rear slot |
| Typical system power | 9 W |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Official module dimensions | 241.3 × 24.4 × 99.1 mm |
| Official module mass | 0.45 kg |
Official module mass and dimensions describe the product itself. The commercial Weight and Dimension fields on this page are retained as the existing packing data unless the manufacturer publishes configured-package data.
The 3500/61 recorder-output function is a system-level selection, not a reason to substitute a 3500/60 front monitor. Verify the installed front module, required outputs, and rear I/O part number as one configuration before replacement.
Use it with the 3500/61 configuration when the project requires its proportional recorder-output function in addition to temperature monitoring.
Record each sensor type, range, lead arrangement or polarity, channel assignment, and recorder-output destination before configuration.
Save the rack configuration, channel sensor types and ranges, alarm settings, recorder assignments, and front-and-rear part numbers.
Confirm the 3500/61 front monitor, channel configuration, recorder assignment and field termination, then compare the recorder signal with the verified temperature value.
Check the recorder assignment, output scaling, channel configuration, destination wiring, and front-module status before replacing the rear I/O module.
Match the exact suffix, connector condition, internal-termination construction, 3500/61 pairing, quantity, and purchase-order scope to the delivered labels.
