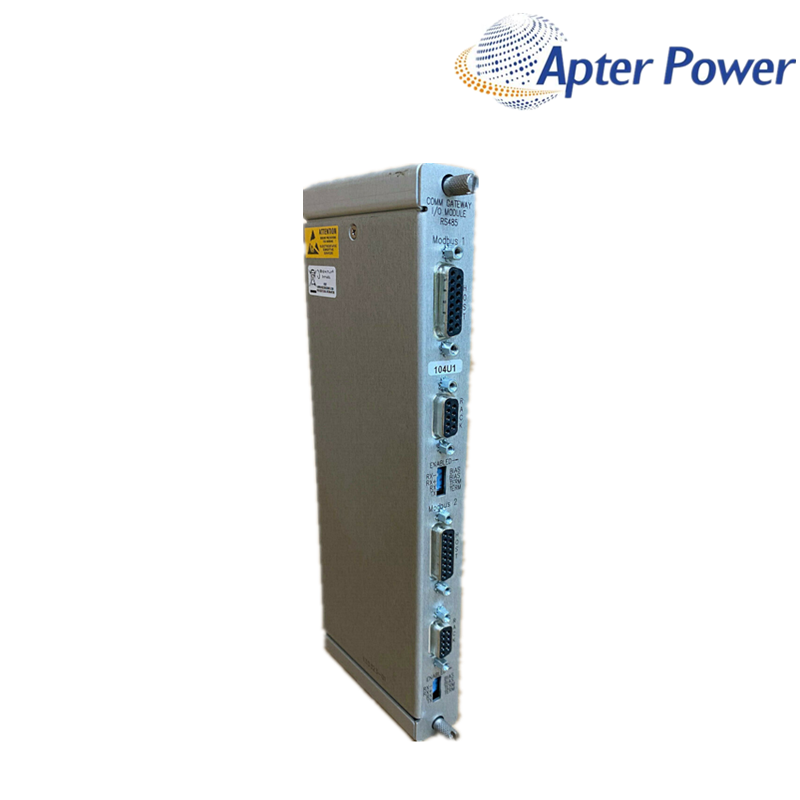

Bently Nevada 133323-01 Modbus RS485 I/O Module for the 3500/92 Communication Gateway.
Item NO.:
133323-01Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.75KGDimension:
2.6x25.2x24.1cmDescription:
Modbus RS485 I/O ModulePrice:
AskOfficial-document-matched product identity for the 3500/92 Communication Gateway.
|
Confirm the exact rack configuration before quotation
Manager JimPei · Technical-document and nameplate review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |
133323-01 is the manufacturer-listed Modbus RS485 rear I/O module for the Bently Nevada 3500/92 Communication Gateway. It provides the differential serial interface used to exchange monitored values, module status and alarm status with a process-control or automation system through Modicon Modbus RTU.
133323-01 is an I/O companion to the separate front gateway module and is intended for RS485 communication, including multi-rack serial arrangements described by the manufacturer. Correct identification matters because this part is not a tachometer module and must not be selected from the page’s previous incorrect description.
RS485 gateway interfaceProvides the official RS485 rear I/O option for the 3500/92 Communication Gateway. |
Multi-rack serial supportFits the manufacturer-defined rack-to-rack RS485 communication arrangement. |
Structured rack dataCarries Modbus RTU access to values, timestamps, module status and alarm status collected by the gateway. |
Official fact: 133323-01 is a Modbus RS485 I/O Module for the 3500/92, not a tachometer module. Engineering consequence: the former page label could lead to a completely wrong application and incompatible rack position. Action: use the complete part number and the 3500/92 context on the RFQ and receiving inspection.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 Series |
| Associated system | 3500/92 Communication Gateway |
| I/O type | Modbus RS485 |
| Serial protocol | Modicon Modbus RTU |
| Typical system power with this I/O | 5.6 W |
| Rack data update | Not more than 1 second; depends on rack configuration |
| Total RS485 cable run | Up to 4000 ft (1220 m) |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
Packaging weight and packed dimensions are commercial logistics fields and are retained separately from the manufacturer’s technical data unless official packing data is available.
Confirm an RS485 Modbus RTU host path, its wiring topology, polarity, termination, and cable route. Do not select this rear I/O module for an RS232 or RS422 link.
List it as the rear Modbus RS485 I/O module and identify the associated front 3500/92 gateway as a separate item.
Map rack order, node addresses, cable numbers and lengths, polarity, termination points, shield treatment, and the final host connection.
Verify front-and-rear pairing, baud and framing, node addresses, RS485 polarity and termination, cable continuity, and gateway communication indicators.
Check polarity, termination, node duplication, serial settings, cable continuity, and the 3500/92 status before changing the register map or replacing hardware.
Provide the front gateway number, network topology, host interface, cable lengths, node scheme, quantity, condition, destination, and clear labels.
Technical identity and product facts were checked against 3500/92 Communication Gateway Datasheet, 141542 Rev. N. Verify the installed nameplate, revision, companion module and project documentation before commissioning.
