Bently Nevada 133300-01 3500/15 Legacy Low Voltage DC Power Input Module

Products
133300-01 3500/15 Legacy Low Voltage DC Power Input Module
133300-01 3500/15 Legacy Low Voltage DC Power Input Module
133300-01 3500/15 Legacy Low Voltage DC Power Input Module

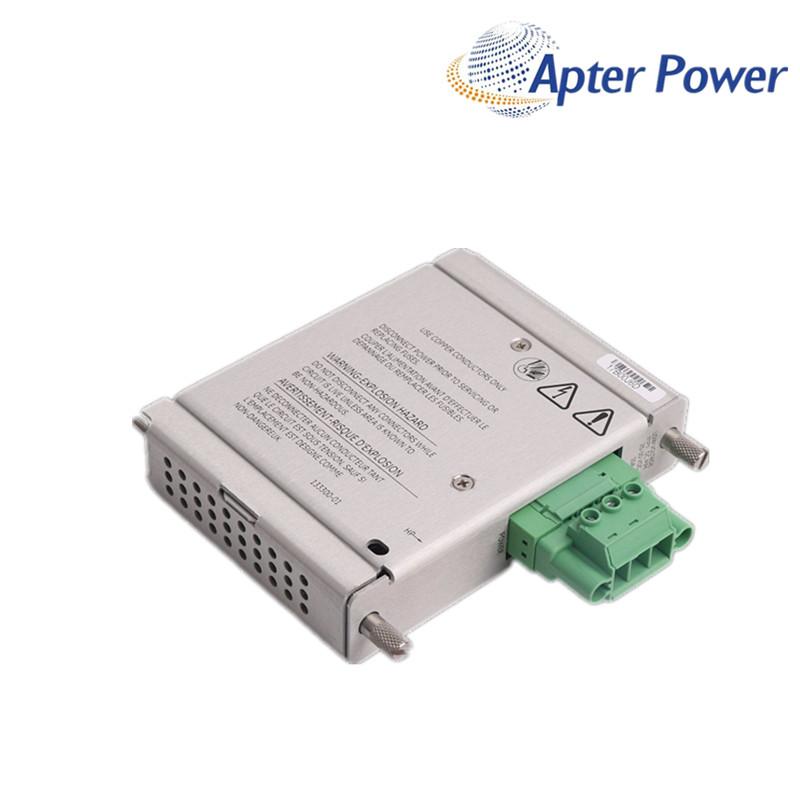

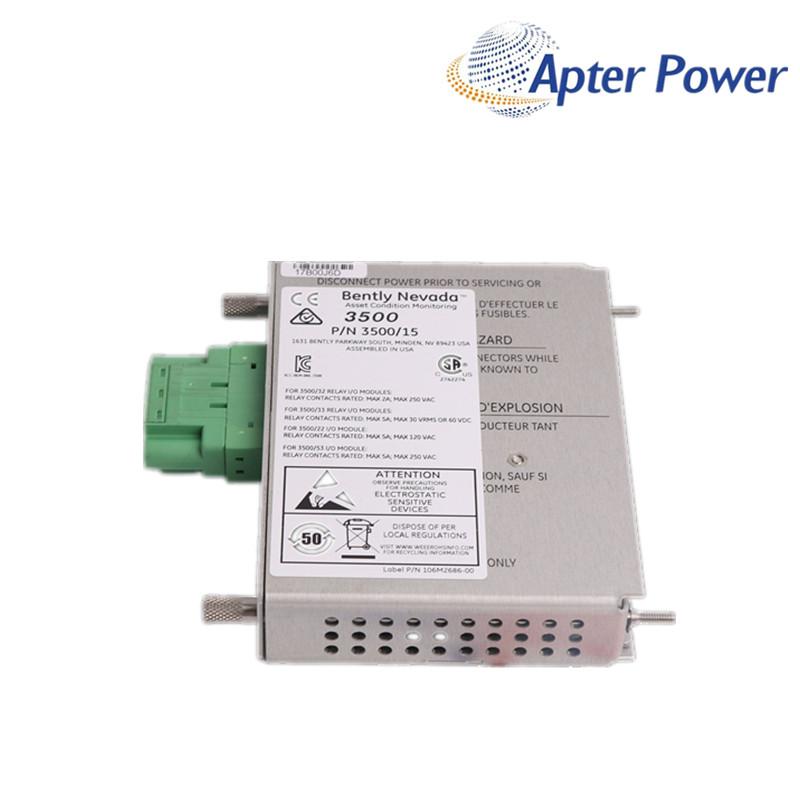

Bently Nevada 133300-01 3500/15 Legacy Low Voltage DC Power Input Module

A rear power-input module for the legacy 20–30 Vdc option in a Bently Nevada 3500/15 rack, used with the matching legacy low-voltage DC supply module.

  • Item NO.:

    133300-01

  • Order(MOQ):

    1

  • Goods Stock:

    13

  • Payment:

    T/T

  • Lead Time：

    In stock

  • Weight:

    0.26KG

  • Dimension:

    2.5x12.8x4cm

  • Description:

    POWER INPUT MODULE

  • Price:

    Ask
Inquiry now
BENTLY NEVADA · CONDITION MONITORING
3500/15 Power Supply
MODEL IDENTIFICATION
133300-01

3500/15 Legacy Low Voltage DC Power Input Module

MANAGERJimPei
WHATSAPP / PHONE+8618020776782EMAILsales1@apterpower.com

Product Record

133300-01 is the rear Power Input Module for the legacy low-voltage DC option in a Bently Nevada 3500/15 rack. It accepts the rack’s 20 to 30 Vdc source and presents that input to the associated legacy supply module.

Install 133300-01 in the special half-height rear position directly behind the matching power supply. The official spare pairing is this PIM with 133292-01; current-generation 114M5330-01 and 114M5335-01 low-voltage parts must not be mixed with the legacy pair.

Before sourcing 133300-01, compare the rear-module nameplate, front power-supply part number, rack position, input voltage and project approval requirements. This prevents selection of a visually similar high-voltage or current-generation PIM that is not compatible with the installed rack.

Order-Code Map

Exact spare
133300-01
Product family
Bently Nevada 3500/15
Component
Legacy Low Voltage DC Power Input Module
Input class
20–30 Vdc
Matching legacy supply
133292-01
Rack position
Rear half-height position behind the associated supply
ApterPLC industrial automation sourcing support

Application Decisions

Legacy Supply Pairing

  • Verify both the front power-supply and rear PIM nameplates before ordering.
  • Keep legacy 133292-01 and 133300-01 together.
  • Do not mix the legacy pair with 114M5330-01 or 114M5335-01 components.

DC Input & Maintenance Control

  • Confirm a regulated 20–30 Vdc source and the required circuit capacity.
  • Check the installed fuse and rear connector against the applicable rack documentation.
  • Do not infer that the rear PIM is hot-swappable from the redundant front-supply statement.

Technical Specifications

Manufacturer
Bently Nevada
Product family
3500/15 AC and DC Power Supplies
Part number
133300-01
Module identity
Legacy Low Voltage DC Power Input Module
Input voltage
20–30 Vdc
Module-face current rating
10 A
Required paired supply
133292-01 Legacy Low Voltage DC Power Supply Module
Compatibility boundary
Not compatible with current-generation high/low-voltage DC supply and PIM families
Rack location
Directly behind the associated power supply
Physical format
Special half-height rear module
Replacement fuse
01720045
Replacement DC PIM connector
118M0915-02
Operating temperature
−30 to +65 °C
Storage / humidity
−40 to +85 °C; 95% non-condensing
COMMERCIAL INFORMATION
Place of shipmentXiamen, China
Delivery Time1-3 days
Quantity100% New Original
Minimum Order Quantity1pc

Alternative Names

13330001133300 01133300/013500/15 133300-01Bently Nevada 133300-01

Frequently Asked Questions

How can I confirm that 133300-01 is required rather than 133292-01?

133300-01 is the rear Power Input Module, while 133292-01 is the matching legacy front power-supply module. Photograph both nameplates and confirm their rack positions.

Can 133300-01 be paired with the current 114M5330-01 low-voltage DC supply?

No. Baker Hughes states that current DC supplies and PIMs are not compatible with their legacy counterparts. Verify the complete supply/PIM pair.

What input source is required for 133300-01?

The legacy low-voltage DC option uses a 20–30 Vdc input. Available current, protective devices and field wiring should also be checked against rack documentation.

Can 133300-01 be removed while the rack remains energized?

Do not assume so. The published hot-swap statement applies to a front supply when a second supply is installed; rear-PIM work should follow the site isolation procedure and user guide.

What information should accompany an RFQ for 133300-01?

Provide photos of the front supply and rear PIM nameplates, rack slot, input voltage, approval markings, quantity and maintenance notes.
