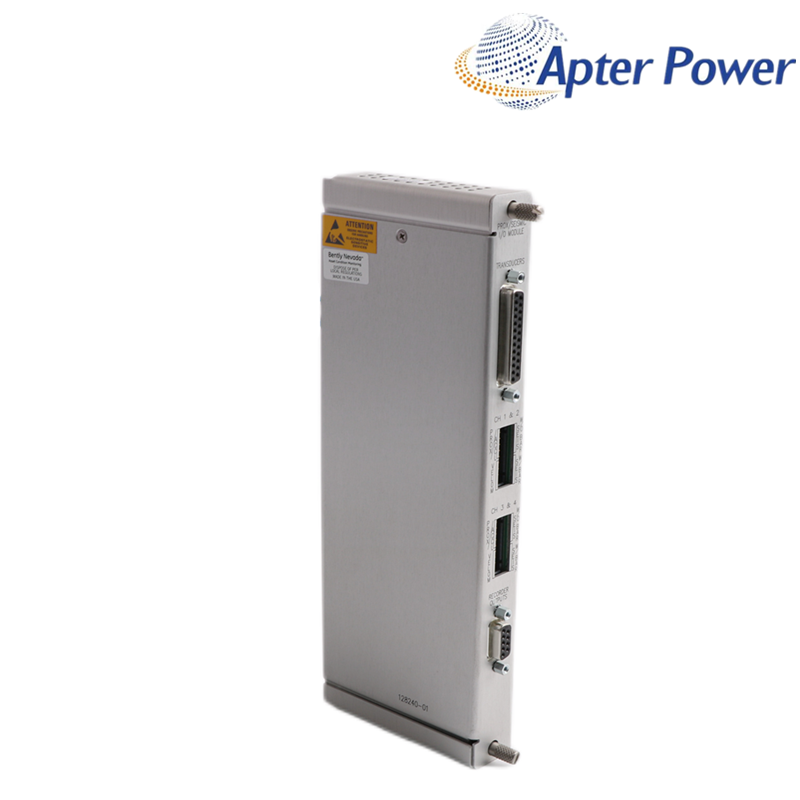

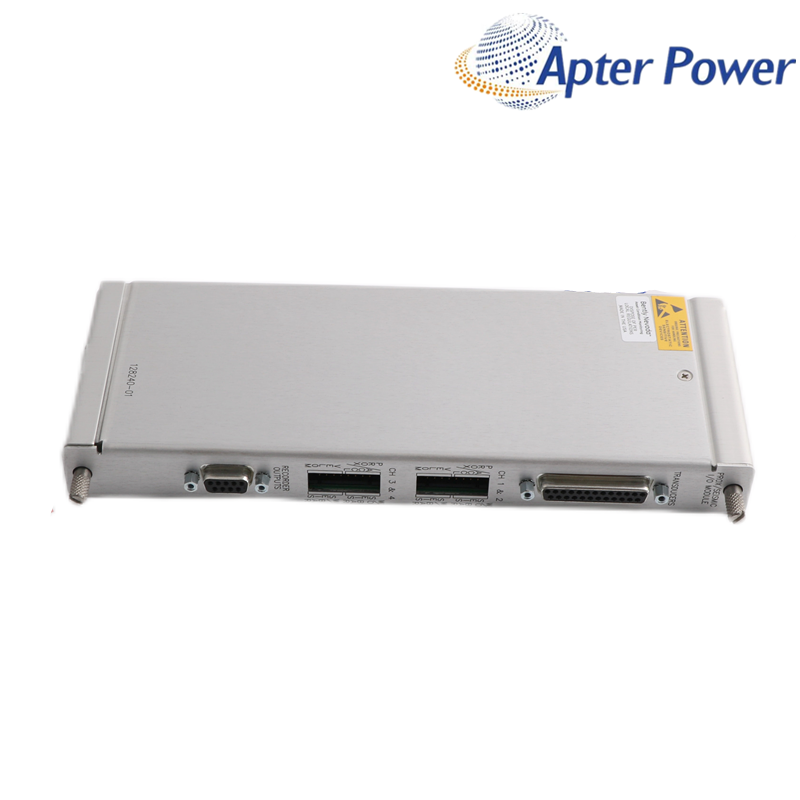

Bently Nevada 128240-01 Prox/Seismic I/O Module with external terminations for the 3500/42M monitor.
Item NO.:
128240-01Order(MOQ):
1Goods Stock:
23Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
2.3x11x24.1cmDescription:
I/O MODULEPrice:
AskOfficial-document-matched product identity for the 3500/42M Proximitor/Seismic Monitor.
|
Confirm the exact rack configuration before quotation
Manager JimPei · Technical-document and nameplate review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |
128240-01 is the official Prox/Seismic I/O module with external terminations for the Bently Nevada 3500/42M four-channel monitor. It supplies the rear-rack interface used to route supported proximity and seismic transducer signals through an external termination block and cable to the front monitor.
128240-01 belongs to a configurable monitoring platform in which channels are programmed in pairs for the required measurement type. Selection therefore depends on both the external-termination architecture and the transducer configuration approved for the project, not simply on the number of field wires.
Proximity and seismic interfaceSupports the manufacturer-defined rear I/O path for 3500/42M proximity/seismic configurations. |
External field terminationSeparates field wiring from the rack through approved external blocks and cables. |
Paired-channel configurationWorks with a monitor whose four channels are programmed in pairs for the selected measurement functions. |
Official fact: 128240-01 is the external-termination option, while 128229-01 is the internal-termination option. Engineering consequence: the wrong variant can be incompatible with the installed terminal hardware and cabling. Action: verify the rear I/O part number, external block, cable and channel transducer types before replacement.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 Series |
| Associated monitor | 3500/42M Proximitor/Seismic Monitor |
| I/O type | Prox/Seismic |
| Termination method | External terminations |
| Monitor channels | Four, configured in pairs |
| Primary documented transducer context | Seismoprobe; Prox/Accel and Velomitor supported with manufacturer cautions |
| Rack position | One full-height rear slot |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Official I/O-module weight | 0.20 kg |
Packaging weight and packed dimensions are commercial logistics fields and are retained separately from the manufacturer’s technical data unless official packing data is available.
No. It is the rear Prox/Seismic I/O module with external terminations; the front monitor remains a separate component.
Match the approved termination block, interconnecting cable and pinout to the installed transducer arrangement and front monitor.
Review the 3500/42M configuration because channels are programmed in pairs and the permitted transducer combinations depend on that pairing.
Capture the front and rear numbers, block and cable codes, channel assignments, transducer types and sensitivities, polarity, and rack configuration.
Check the external block, cable and connectors, front-and-rear pairing, channel configuration, and shared wiring before investigating individual sensors.
Provide the front monitor number, transducer types by channel, external block and cable codes, quantity, condition, destination, and clear labels.
Technical identity and product facts were checked against 3500/42M Proximitor/Seismic Monitor Datasheet, 143694 Rev. AE. Verify the installed nameplate, revision, companion module and project documentation before commissioning.
