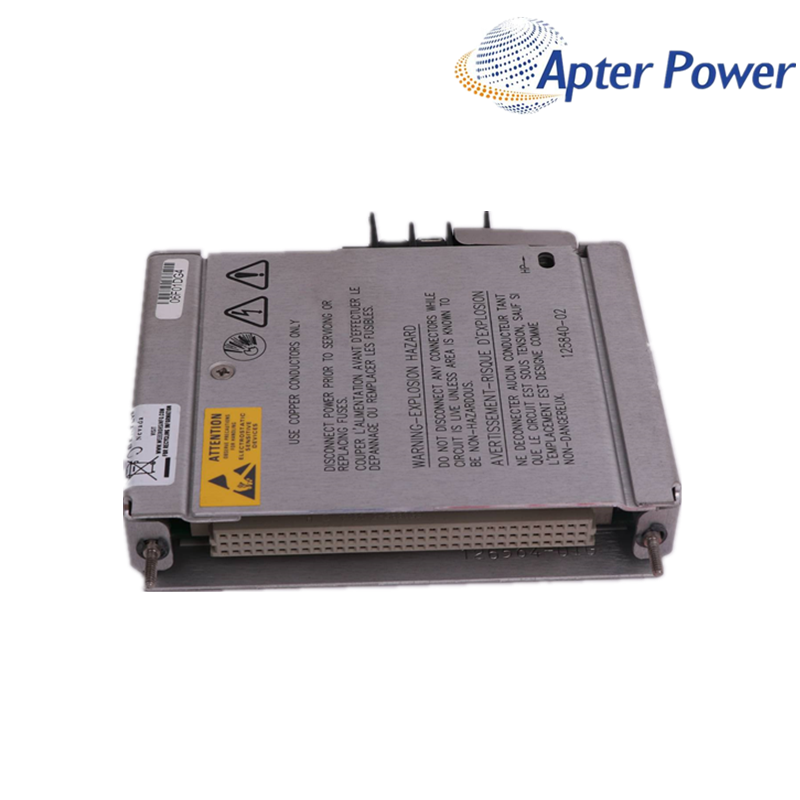

Bently Nevada 125840-02 is a legacy low-voltage AC Power Input Module (PIM) used with the 3500/15 power-supply architecture. The PIM is the rear input module that receives and terminates incoming AC power for its associated power-supply module; it should not be described or purchased as the front power-supply module itself.
Item NO.:
125840-02Order(MOQ):
1Goods Stock:
20Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
12x12x2.6cmDescription:
3500/15 Low Voltage AC Power Input ModulePrice:
AskOfficial-source configuration guidance for engineering review, replacement checks and quotation preparation.
Bently Nevada 125840-02 is a legacy low-voltage AC Power Input Module (PIM) used with the 3500/15 power-supply architecture. The PIM is the rear input module that receives and terminates incoming AC power for its associated power-supply module; it should not be described or purchased as the front power-supply module itself.

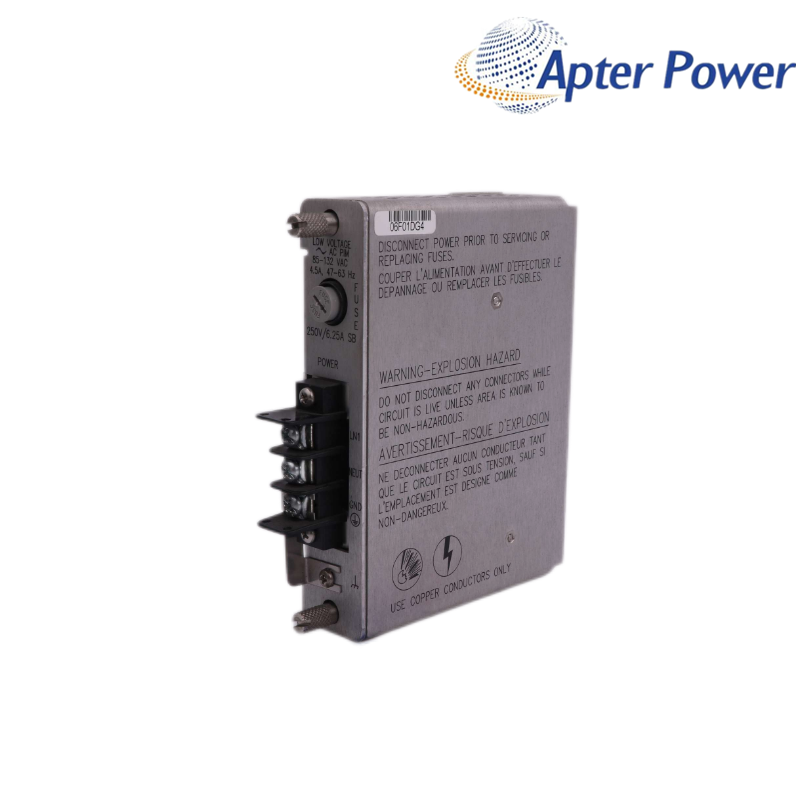

The manufacturer identification visible on 125840-02 specifies a low-voltage AC input range of 85 to 132 Vac, a 4.5 A rating, 47 to 63 Hz operation and a 250 V / 6.25 A slow-blow fuse. The current 3500/15 datasheet classifies this design as a legacy Low Voltage AC PIM and shows the same front-label configuration.
Replacement decisions must preserve the matched power-supply and PIM generation. Baker Hughes states that the current Universal AC Power Supply and Universal AC PIM are not compatible with the legacy 3500 AC Power Supply, High Voltage AC PIM or Low Voltage AC PIM.
|
Legacy 3500/15 PIM role
125840-02 is the rear low-voltage AC Power Input Module associated with a legacy 3500/15 AC power-supply set.
|
Clearly identified AC input
The manufacturer label identifies 85–132 Vac, 4.5 A and 47–63 Hz for this low-voltage AC input configuration.
|
Generation-specific compatibility
The legacy PIM must stay paired with the compatible legacy power-supply generation; current Universal AC components cannot be mixed into the pair.
|
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Full part number | 125840-02 |
| Product family | 3500/15 AC and DC Power Supplies |
| Product type | Legacy Low Voltage AC Power Input Module (PIM) |
| Nominal input | 110 Vac |
| Input voltage range | 85 to 132 Vac rms |
| Input frequency | 47 to 63 Hz |
| Current marking | 4.5 A |
| Fuse marking | 250 V / 6.25 A slow-blow |
| Installation position | Special half-height input-module position directly behind the associated power supply |
| Power Input Module dimensions | 120.7 × 25.4 × 114.3 mm (family specification) |
| Power Input Module weight | 0.34 kg (family specification) |
| Operating temperature | -30°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 95%, non-condensing |
Technical evidence: Bently Nevada / Baker Hughes 3500/15 AC and DC Power Supplies Datasheet 141530 Rev. P, cross-checked against the manufacturer identification visible on the supplied 125840-02 product images.
