Item NO.:
125704-01Order(MOQ):
1Goods Stock:
18Payment:
T/TLead Time：
In stockWeight:
0.5kgDimension:
24.1x2.44x9.91cmDescription:
TMR Relay I/O ModulePrice:
AskTMR Relay I/O Module for the 3500/34 relay assembly

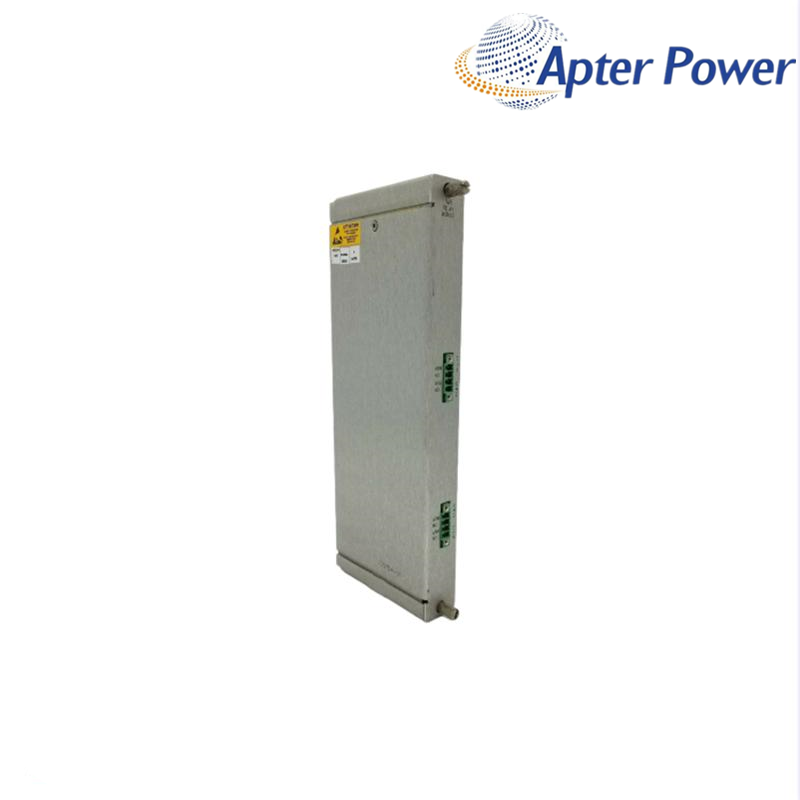

The Bently Nevada 125704-01 is the full-height rear TMR Relay I/O Module used as the physical relay-output stage of a 3500/34 assembly. In the official architecture, two half-height TMR Relay Modules perform the configured logic in parallel, while the rear I/O module receives their alarm-contact signals and operates the field relay contacts.
Within each of its four channel groups, the Bently Nevada 125704-01 uses three relays to implement 2-out-of-3 hardware voting. This arrangement is intended for the TMR relay path; buyers should therefore identify whether they need this rear I/O spare alone or the other components required for a complete 3500/34 assembly before quotation.
Send the complete part number, required quantity, current 3500/34 assembly information and delivery destination. We will confirm the offered scope before quotation.
Manager: JimPei
Phone: +8618020776782
| Manufacturer | Bently Nevada |
|---|---|
| Part number | 125704-01 |
| Product family | 3500/34 TMR Relay Module |
| Product type | TMR Relay I/O Module |
| Relay arrangement | 12 relays; four channel groups of three |
| Voting method | 2-out-of-3 hardware voting for each relay channel |
| Relay operation | Normally energized |
| Contact life | 100,000 cycles at 1.5 A / 24 Vdc or 1 A / 120 Vac |
| Maximum switched power | 60 W dc; 125 VA ac |
| Maximum switched current | 2 A, resistive load |
| Maximum switched voltage | 150 Vdc; 220 Vac |
| Module dimensions | 241 x 24.4 x 99.1 mm (H x W x D) |
| Module weight | 0.5 kg |
| Rack space | One full-height rear slot |
| Operating temperature | -30 to +65 degrees C |
| Storage temperature | -40 to +85 degrees C |
| Humidity | 95%, non-condensing |
125704-01 identifies the rear TMR Relay I/O Module, not a complete 3500/34 set. Before ordering, compare the installed nameplate and confirm whether the required scope includes the two half-height TMR Relay Modules, mounting hardware or only this I/O spare.
